Product Summary

The SN755870 is a Texas Instruments Plasma TV Buffer IC produced by Texas with TQFP-100 package.

Parametrics

SN755870 absolute maximum ratings: (1)Place of Origin: Taiwan; (2)Operating Temperature: 70℃; (3)Dissipation Power: 11W; (4)Type: Drive IC; (5)Brand Name: SN; (6)Application: TV; (7)Supply Voltage: 5V to 100V; (8)Model Number: SN75870; (9)PACKAGE: QFP100; (10)Applications: PDP; (11)NET.WEIGHT: 0.75G; (12)PIN: 100.

Diagrams

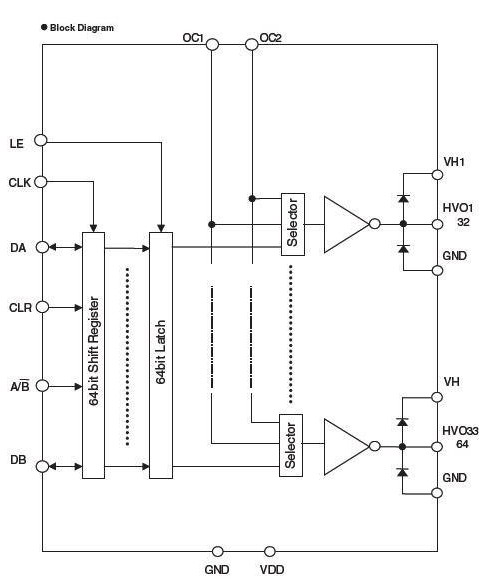

SN755870 block diagram
