Product Summary

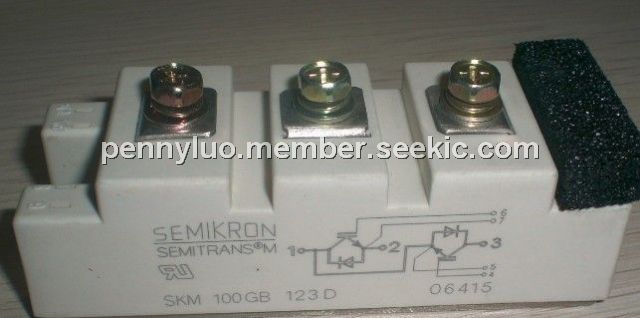

The SKM100GB123D is an IGBT module. The typical applications of the device include AC inverter drives and UPS.
Parametrics
SKM100GB123D absolute maximum ratings: (1)VCES: 1200V when Tj=25℃; (2)IC: 100A when Tj=150℃, Tcase=25℃; 90A when Tj=150℃, Tcase=80℃; (3)ICRM: 150A when ICRM=2xICnom; (4)VGES: ±20V; (5)tpsc: 10μs when VCC=600V. VGE≤20V, Tj=125℃, VCES<1200V; (6)IF: 95A when Tj=150℃, Tcase=25℃; 90A when Tj=150℃, Tcase=80℃; (7)IFRM: 150A whe nRFRM=2xIFnom; (8)IFSM: 720A when tp=10ms; sin Tj=150℃; (9)IF: 130A when Tj=150℃, Tcase=25℃; 90A when Tj=150℃, Tcase=80℃; (10)IFRM: 200A when IFRM=2xIFnom; (11)It(RMS): 200A; (12)Tvj: -40~+150℃; (13)Tstg: -40~+125℃; (14)Visol: 2500V when AC, 1min.
Features
SKM100GB123D features: (1)MOS input (voltage controlled); (2)N channel, homogeneous Si; (3)low inductance case; (4)very low tail current with low temperature dependence; (5)high short circuit capability, self limiting to 6Icnom; (6)latch-up free; (7)fast&soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding technology; (9)large clearance (10mm) and creepage distances (20mm).
Diagrams
 |
