Product Summary

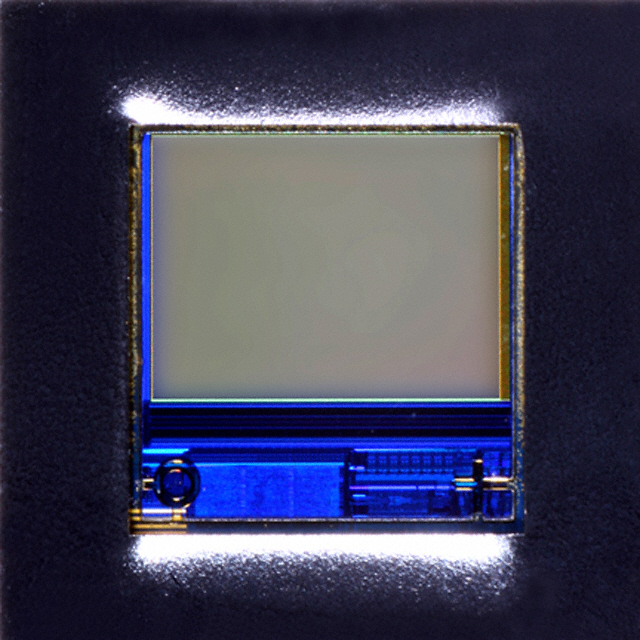

The MT9V011P11STC is a VGA-format with a 1/4-inch CMOS active-pixel digital image sensor. The active imaging pixel array is 649H x 489V. It incorporates sophisticated camera functions on-chip such as windowing, column and row mirroring. It is programmable through a simple two-wire serial bus interface and has very low power consumption. The MT9V011P11STC features DigitalClarity, our breakthrough, low-noise CMOS imaging technology that achieves CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost and integration advantages of CMOS. The applications of the MT9V011P11STC include Cellular phones, PDAs, PC Cameras, Toys and other battery-powered products.
Parametrics
MT9V011P11STC absolute maximum ratings: (1)VIH, Input High Voltage: VPWR-0.25 to VPWR+0.25 V; (2)VIL, Input Low Voltage: -0.3 to 0.8 V; (3)IIN, Input Leakage Current No Pull-up Resistor; VIN = VPWR or VGND: -5 to 5 μA; (4)VOH, Output High Voltage: VPWR-0.2 V; (5)VOL, Output Low Voltage: 0.2 V; (6)IOH, Output High Current: 5.0 μA; (7)IOL, Output Low Current: 5.0 μA; (8)IOZ, Tri-state Output Leakage Current: 5.0 μA; (9)IAA, Analog Operating Current CLK = 27 MHz; default setting, CLOAD = 10pF: 14.0 to 28.0 mA; (10)IDD, Digital Operating Current CLK = 27 MHz; default setting, CLOAD = 10pF: 3.0 to 8.0 mA; (11)IAA, Standby Analog Standby Supply Current STDBY = VDD: 0.0 to 5.0 μA; (12)IDD, Standby Digital Standby Supply Current STDBY = VDD: 0.0 to 5.0 μA.
Features
MT9V011P11STC features: (1)DigitalClarity CMOS Imaging Technology; (2)Ultra low-power, low cost CMOS image sensor; (3)Superior low-light performance; (4)Simple two-wire serial interface; (5)Auto black level calibration; (6)Window Size: VGA, programmable to any smaller format (QVGA, CIF); (7)Programmable Controls: Gain, frame rate, left-right and up-down image reversal, window size and panning.

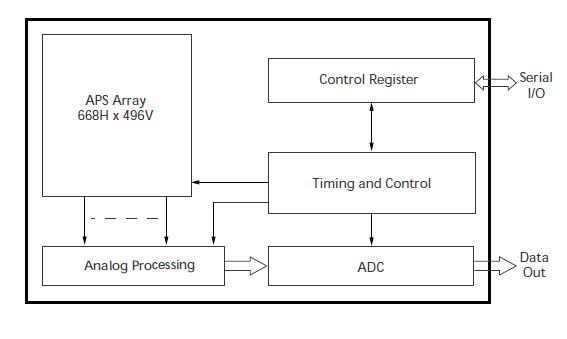

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MT9V011P11STC:B |
|
SENSOR IMAGE VGA COLOR CMOS PLCC |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
MT9V011IA9STC:B |
Micron Technology Inc |
IC SENSOR IMAGE COLOR 28-PLCC |
Data Sheet |
|
|
||||||
|
MT9V011P11STC:B |
|
SENSOR IMAGE VGA COLOR CMOS PLCC |
Data Sheet |
|
|
||||||
 |
MT9V012 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
MT9V022I77ATC |
|
IC SENSOR IMAGE VGA COLOR 52IBGA |
Data Sheet |
Negotiable |
|
||||||
|
MT9V022I77ATCH ES |
|
KIT HEAD BOARD FOR MT9V022 |
Data Sheet |
|
|
||||||
|

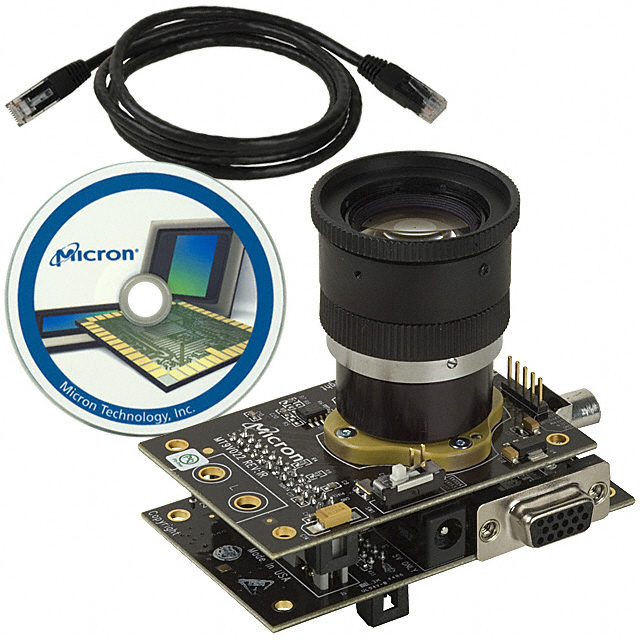

MT9V022I77ATMD ES |
|
KIT DEVELOPMENT FOR MTNV022 MONO |
Data Sheet |
|
|
||||||
