Product Summary

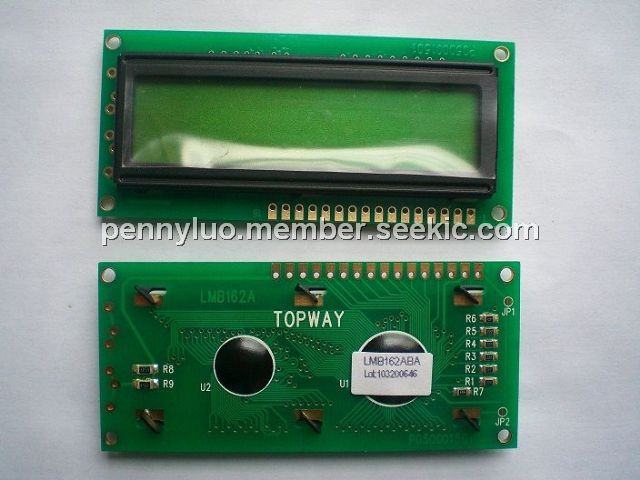

The LMB162ABA is a LCD module.

Parametrics

LMB162ABA absolute maximum ratings: (1)Operating Voltage (V), VDD: 0 to 6.0 V; (2)Operating Temperature (℃), TOP: -20 to +70 ℃; (3)Storage Temperature (℃), TST: -30 to +80 ℃.

Features

LMB162ABA features: (1)Operating Voltage (V), VDD: 4.7 to 5.3 V; (2)Input High Voltage (V), VIH: 0.8 VDD -VDD V; (3)Input Low Voltage (V), VIL: VSS: 0.5 V; (4)Operating Current (mA), IDD: -1.3 to 3.0 mA.

Diagrams

LMB162ABA block diagram
