Product Summary
The T491D476M016ZT is a tantalum capacitor. Its typical applications include decoupling and filtering in industrial and automotive end applications such as DC/DC converters, portable electronics, telecommunications, and control units.
Parametrics
Specifications: (1)Manufacturer: KEMET; (2)Capacitance: 47 uF; (3)Voltage DC @ 85C: 16V; (4)Voltage DC @ 105C: 13V; (5)Voltage DC @ 125C: 10V; (6)Tolerance: +/-20%; (7)Application: General Purpose; (8)Body Type: Molded Chip; (9)Temperature Range: -55/+125C; (10)Footprint: 7343; (11)Termination: Tin; (12)Leakage Current: 7.5 uA; (13)Dissipation Factor: 6%; (14)Impedance @ 100kHz: 800 mOhm; (15)Package Kind: T&R; (16)Package Quantity: 750; (17)Miscellaneous Electrical: Closest Kemet Original Series Equivalent: T491D476M016AT.
Features
Features: (1)Meets or Exceeds EIA Standard 535BAAC; (2)Taped and Reeled per EIA 481-1; (3)Symmetrical, Compliant Terminations; (4)Optional Gold-plated Terminations; (5)Laser-marked Case; (6)100% Surge current test on C, D, E, U, V, X sizes; (7)Halogen Free Epoxy; (8)Extended Range Values; (9)Low Profile Case Sizes; (10)RoHS Compliance & Lead Free Terminations.

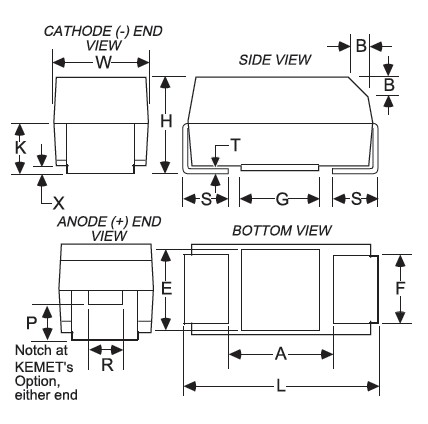

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 T491D476M016ZT |
Kemet |
Tantalum Capacitors - Solid SMD 16v 47uF 20% Tol |
Data Sheet |
|
|
||||||||||||||
