Product Summary

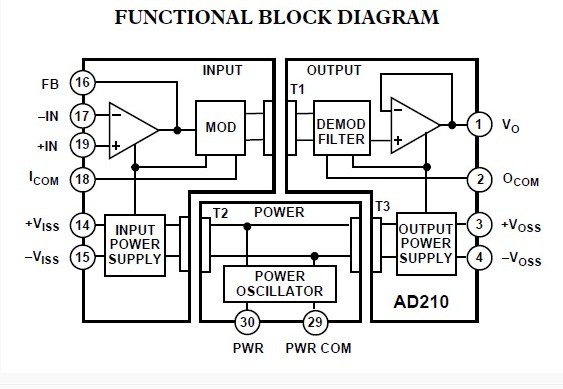

The AD210AN is a low cost, high performance isolation amplifier. This three-port, wide bandwidth isolation amplifier is manufactured with surface-mounted components in an automated assembly process. The AD210AN combines design expertise with state-of-the-art manufacturing technology to produce an extremely compact and economical isolator whose performance and abundant user features far exceed those offered in more expensive devices. The AD210AN provides a complete isolation function with both signal and power isolation supplied via transformer coupling internal to the module. The AD210AN functionally complete design, powered by a single +15 V supply, eliminates the need for an external DC/DC converter, unlike optically coupled isolation devices. The true three-port design structure permits the AD210AN to be applied as an input or output isolator, in single or multichannel applications. The AD210AN will maintain its high performance under sustained common-mode stress. The applications of the AD210AN include Multichannel Data Acquisition, High Voltage Instrumentation Amplifier, Current Shunt Measurements and Process Signal Isolation.

Parametrics

AD210AN absolute maximum ratings: (1)Number of Pins: 30; (2)Isolation Voltage: 2.50 kV; (3)Slew Rate: 1.00 V/μs; (4)Supply Current: 50.0 mA; (5)Supply Voltage (DC): 5.00 V; (6)Mounting Type: Through Hole; (7)Packaging: Tube; (8)RoHS: Non-Compliant.

Features

AD210AN features: (1)High CMV Isolation: 2500 V rms Continuous. 63500 V Peak Continuous; (2)Small Size: 1.00" 3 2.10" 3 0.350"; (3)Three-Port Isolation: Input, Output, and Power; (4)Low Nonlinearity: 60.012% max; (5)Wide Bandwidth: 20 kHz Full-Power (–3 dB); (6)Low Gain Drift: 625 ppm/8C max; (7)High CMR: 120 dB (G = 100 V/V); (8)Isolated Power: 615 V @ 65 mA; (9)Uncommitted Input Amplifier.
