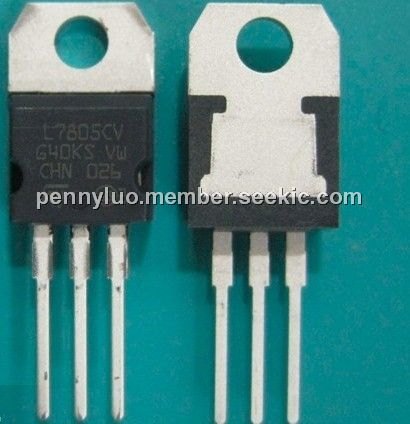

Product Summary
The L7805CV is a three-terminal positive regulator. It is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7805CV can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Although designed primarily as fixed voltage regulators, this device can be used with external components to obtain adjustable voltage and currents.
Parametrics
Absolute maximum ratings:(1)VI,DC Input Voltage : 35V for VO= 5 to 18V; 40v for VO= 20, 24V; (2)IO, Output Current: Internally Limited; (3)Ptot, Power Dissipation: Internally Limited; (4)Tstg, Storage Temperature Range: -65 to 150 °C; (5)Top,Operating Junction Temperature Range:-55 to 150°C for L7800; 0 to 150°C for L7800C.
Features
Features:(1)output current to 1.5a; (2)output voltages of 5; 5.2; 6; 8; 8.5; 9;10; 12; 15; 18; 24v; (3)thermal overload protection; (4)short circuit protection; (5)output transition soa protection.

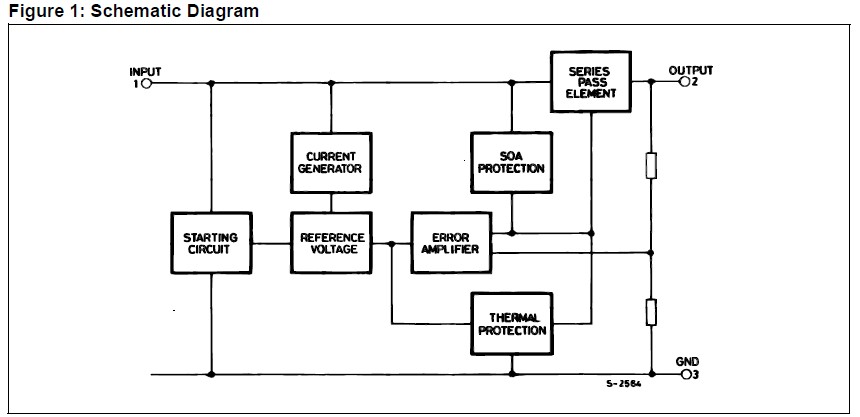

Diagrams
