SST55LC200-60-C-TQWE

Product Summary

The SST55LC200-60-C-TQWE NAND Controller is the core of a highperformance, flash media-based, data storage system. The controller recognizes the control, address, and data signals on the CF bus and translates them into memory accesses for standard NAND-type flash media. It supports standard CF protocols with up to PIO Mode-6, Multi-word DMA Mode-4, and Ultra DMA Mode-4 interface. Upon initial power-on, the SST55LC200-60-C-TQWE recognizes the flash media devices, sets up a bad block table, executes all the necessary handshaking routines for flash media support, and, finally, performs the low-level format.

Parametrics

Absolute maximum stress ratings: (1)Temperature Under Bias:-55°C to +125°C; (2)Storage Temperature:-65°C to +150°C; (3)D.C. Voltage on Pins1 I3, I4, O4, and O5 to Ground Potential:-0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Pins1 I3, I4, O4, and O5 to Ground Potential:-2.0V to VDD+2.0V; (5)D.C. Voltage on Pins1 I1, I2, O1, O2, and O6 to Ground Potential:-0.5V to VDDQ+0.5V; (6)Transient Voltage (<20 ns) on Pins1 I1, I2, O1, O2, and O6 to Ground Potential:-2.0V to VDDQ+2.0V; (7)Package Power Dissipation Capability (TA = 25°C):1.0W; (8)Through Hole Lead Soldering Temperature (10 Seconds):300°C; (9)Surface Mount Solder Reflow Temperature:260°C for 10 seconds; (10)Output Short Circuit Current2:50 mA.

Features

Features: (1)CompactFlash Association Specification Revision 3.0 Standard Interface; (2)Interface for Standard NAND Flash Media; (3)3.3V Power Supply and NAND Flash Interface; (4)5.0V or 3.3V Host Interface Through VDDQ Pins; (5)20-byte Unique ID for Enhanced Security; (6)Programmable, Multitasking NAND Interface; (7)Firmware Storage in Embedded SuperFlash; (8)Pre-programmed Embedded Firmware; (9)Built-in Internal System Clock; (10)Multi-tasking Technology Enables Fast Sustained Write Performance (Host to Flash); (11)Automatic Recognition and Initialization of Flash Media Devices; (12)All non-Pb (lead-free) Devices are RoHS Compliant.

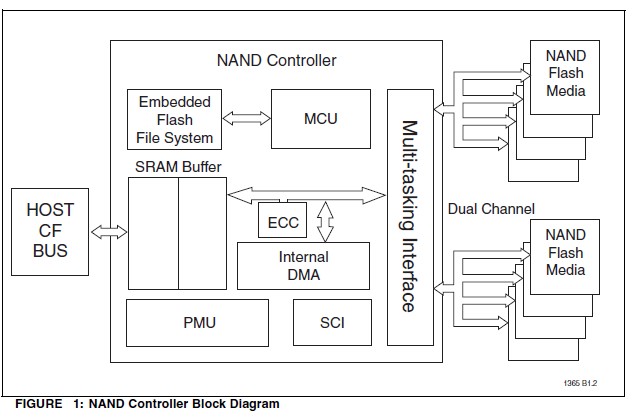

Diagrams
