Product Summary

The LM358N is a low power dual operational amplifier, which was designed specifically to operate from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage. Its applications include transducer amplifiers, dc gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems.

Parametrics

Absolute maximum ratings:(1)VCC, Supply voltage: +/-16 or 32 V; (2)Vi, Input Voltage: -0.3 to +32 V; (3)Vid, Differential Input Voltage: +32 V; (4)Ptot, Power Dissipation:500mW;Output Short-circuit Duration:Infinite; (5)Iin, Input Current:50 mA; (6)Toper, Opearting Free-air Temperature Range:0 to +70 °C; (7)Tstg, Storage Temperature Range: -65 to +150 °C.

Features

Features:(1)internally frequency compensated; (2)large dc voltage gain: 100db; (3)wide bandwidth (unity gain): 1.1mhz(temperature compensated); (4)very low supply current/op (500μa)essentially independent of supply voltage; (5)low input bias current: 20na(temperature compensated); (6)low input offset voltage: 2mv; (7)low input offset current: 2na; (8)input common-mode voltage range includes ground; (9)differential input voltage range equal to the power supply voltage; (10)large output voltage swing 0v to(vcc - 1.5v).

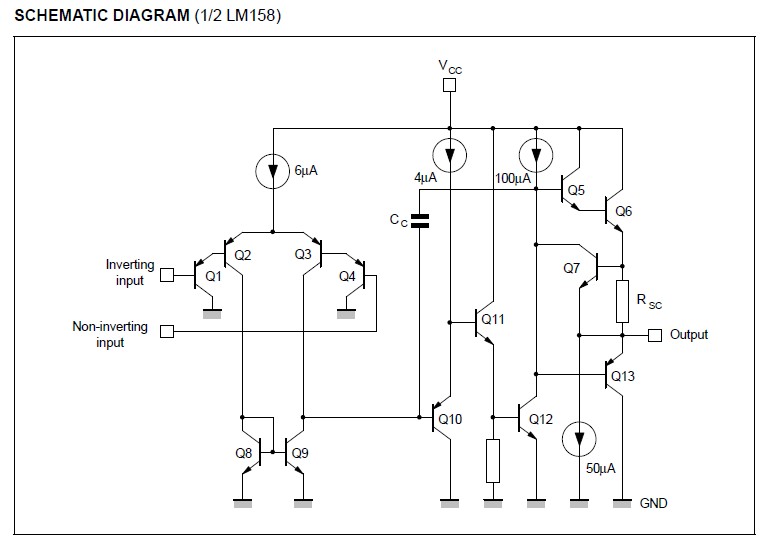

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM358N
LM358N
Fairchild Semiconductor
Operational Amplifiers - Op Amps Dual Operational Amp
Data Sheet
0-1: $0.22
1-25: $0.19
25-100: $0.15
100-250: $0.13
LM358N/NOPB
LM358N/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP
Data Sheet
0-1: $0.56
1-25: $0.43
25-100: $0.38
100-250: $0.33
LM358NG
LM358NG
ON Semiconductor
Operational Amplifiers - Op Amps 3-32V Dual Lo PWR Commercial Temp
Data Sheet
0-1: $0.23
1-25: $0.20
25-100: $0.14
100-500: $0.12
