Product Summary

The MC3523U is a overvoltage sensing circuit (OVP) protects sensitive electronic circuity from overvoltage transistors or regulator failures when used in conjunction with an external "crowbar" SCR. The unit senses the overvoltage condition and quickly "crowbar" or short circuit the supply, forcing the supply into current limiting or opening the fuse or circuit breaker. The protection voltage threshold is adjustable and the MC3523U can be programmed for minimum duration of overvoltage condition before tripping, thus supplying noise immunity.

Parametrics

MC3523U absolute maximum ratings: (1)Different power supply voltage, VCC-VEE: 40Vdc; (2)Sense voltage, Vsense1: 6.5Vdc; (3)Sense voltage, Vsense2: 6.5Vdc; (4)Remote activation input voltage, Vact: 7Vdc; (5)Output current, IO: 300mA; (6)Operating ambient temperature range, Ta: -55 to +125℃; (7)Operating junction temperature, TJ: 125℃; (8)Storage temperature range, Tstg: -65 to +150℃.

Features

MC3523U features: (1)Supply voltage range, VCC-VEE: 4.5 to 40V; (2)Output voltage, VO: VCC-2.2 to VCC-1.8V; (3)Indicator output voltage, VOL: 0.1 to 0.4V; (4)Sense trip voltage, Vsense: 2.45 to 2.75V; (5)Temperature coefficient of Vsense1: IIH: 5 to 40μA; IIL: -120 to -180μA; (6)Source current, Isource: 0.1 to 0.3mA.

Diagrams

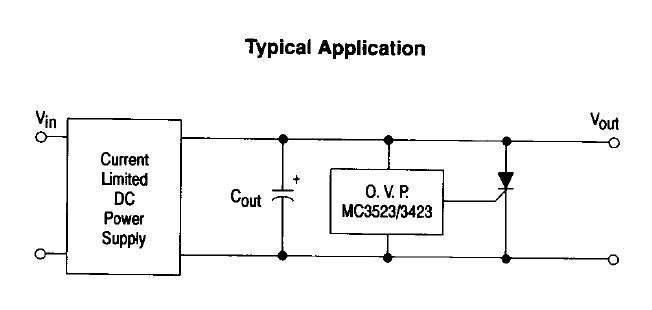

MC3523U block diagram
