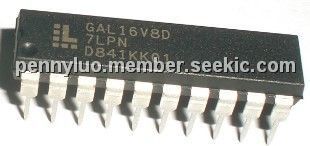

GAL16V8D-7LPN

Product Summary

The GAL16V8D-7LPN is a High Performance E2CMOS PLD Generic Array, at 3.5 ns maximum propagation delay time, combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest speed performance available in the PLD market. High speed erase times (<100ms) allow the device to be reprogrammed quickly and efficiently. The generic architecture provides maximum design flexibility by allowing the Output Logic Macrocell (OLMC) to be configured by the user. An important subset of the many architecture configurations possible with the GAL16V8D-7LPN are the PAL architectures listed in the table of the macrocell description section.

Parametrics

GAL16V8D-7LPN absolute maximum ratings: (1)Supply voltage VCC: -0.5 to +7V; (2)Input voltage applied: -2.5 to VCC +1.0V; (3)Off-state output voltage applied: -2.5 to VCC +1.0V; (4)Storage Temperature: -65 to 150℃; (5)Ambient Temperature with Power Applied: -55 to 125℃.

Features

GAL16V8D-7LPN features: (1)High performance E2CMOS technology, 3.5 ns Maximum Propagation Delay; Fmax = 250 MHz; 3.0 ns Maximum from Clock Input to Data Output; UltraMOS Advanced CMOS Technology; (2)50% to 75% REDUCTION IN POWER FROM BIPOLAR, 75mA Typ Icc on Low Power Device; 45mA Typ Icc on Quarter Power Device; (3)ACTIVE PULL-UPS ON ALL PINS; (4)E2 CELL technology, Reconfigurable Logic; Reprogrammable Cells; 100% Tested/100% Yields; High Speed Electrical Erasure (<100ms); 20 Year Data Retention; (5)Eight output logic macrocells, Maximum Flexibility for Complex Logic Designs; Programmable Output Polarity; Also Emulates 20-pin PAL?Devices with Full Function/Fuse Map/Parametric Compatibility; (6)Preload and power-on reset of all registers, 100% Functional Testability; (7)Applications include: DMA Control; State Machine Control; High Speed Graphics Processing; Standard Logic Speed Upgrade; (8)Electronic signature for identification; (9)Lead-free package options.

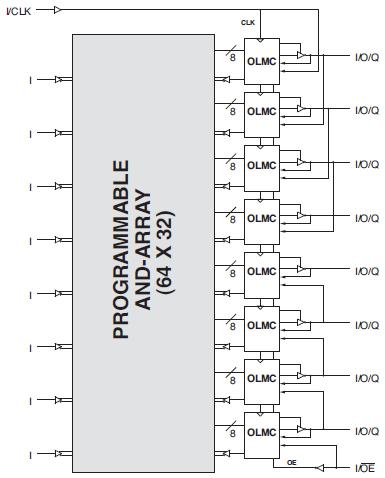

Diagrams
