Product Summary

The XC6203E332PR is a highly precise, low power consumption, positive voltage regulator manufactured using CMOS and laser trimming technologies. The device provides large currents with a significantly small dropout voltage. The XC6203E332PR consists of a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between a voltage of 1.8V and 6.0V.

Parametrics

Absolute maximum ratings: (1)Input Voltage, VIN: 12v; (2)Output Current, IOUT: 500mA; (3)Output Voltage, VOUT: VSS-0.3～VIN+0.3v; (4)Power Dissipation, Pd: 500mW; (5)Operating Ambient Temperature, Topr: -40～+85℃; (6)Storage Temperature, Tstg: -40～+125℃.

Features

Features: (1)Maximum Output Current : 400mA; (2)Maximum Operating Voltage : 8V; (3)Output Voltage Range : 1.8V ~ 6.0V(selectable in 0.1V steps); (4)Highly Accurate : ± 2%; (5)Low Power Consumption : TYP 8.0 μA; (6)Output Voltage Temperature Characteristics: TYP ±100ppm/℃; (7)Operational Temperature Range : -40℃ ~ 85℃; (8)Ultra Small Packages : SOT-89.

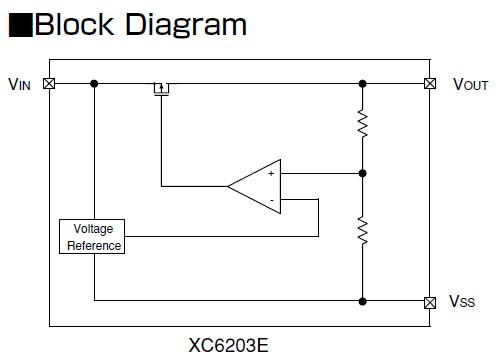

Diagrams
