Product Summary

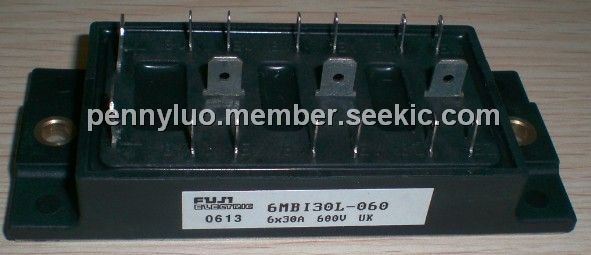

The 6MBI30L-060 is an IGBT module. The applications of the device are inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines, such as welding machines.
Parametrics
6MBI30L-060 absolute maximum ratings: (1)collecter-emitter voltage, VCES: 600v; (2)gate-emitter voltage, VGES: ±20v; (3)collecter current: continuos, IC=30A; 1ms, ICpulse=60A; continuous, -IC=30A; 1ms, -ICpulse=60A; (4)max power dissipation, PC=120w; (5)operating temperature, Tj=150℃; (6)storage temperature, Tstg: -40 to 125℃; (7)net,weight: 235g; (8)isolation voltage, AC.1min: Visol=2500v; (9)screw torque: 35 kg.m.
Features
6MBI30L-060 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive.
