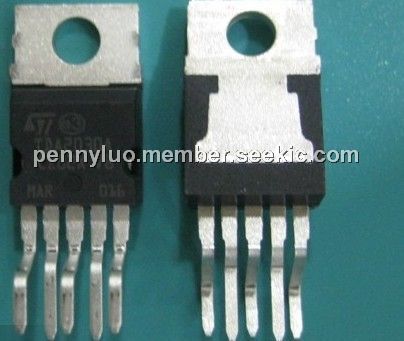

Product Summary
The TDA2030A is a monolithic IC in Pentawatt package intended for use as low frequency class AB amplifier. With VS max = 44V it is particularly suited for more reliable applications without regulated supply and for 35W driver circuits using low-cost complementary pairs. The TDA2030A provides high output current and has very low harmonic and cross-over distortion.
Parametrics
Absolute maximum ratings:(1)Vs, Supply Voltage: ± 22 V; (2)Vi, Input Voltage: Vs; (3)Vi, Differential Input Voltage: ± 15 V; (4)Io, Peak Output Current (internally limited): 3.5 A; (5)Ptot, Total Power Dissipation at Tcase = 90 °C: 20 W; (6)Tstg, Tj, Storage and Junction Temperature: – 40 to + 150 °C.
Features
Features:(1)Rth (j-case), Thermal Resistance Junction-case: 3 °C/W Max; (2)high output current; (3)low harmonic and cross-over distortion; (4)suited for more; (5)reliable applications without regulated supply.

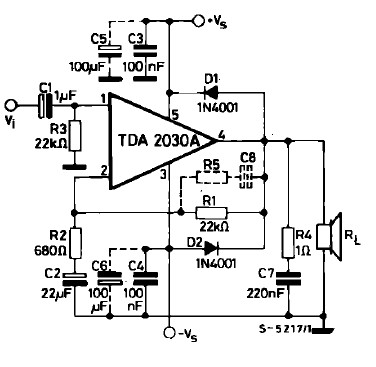

Diagrams
