Product Summary

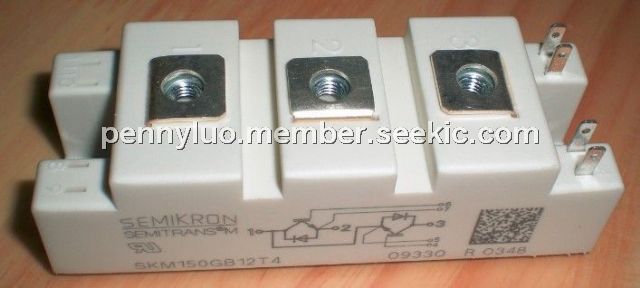

The SKM150GB12T4 is a Fast IGBT4 Module. The applications of the SKM150GB12T4 include AC inverter drives, UPS, Electronic welders at fsw up to 20 kHz.
Parametrics
SKM150GB12T4 absolute maximum ratings: (1)VCES: 1200 V; (2)IC Tj = 175℃, Tc = 25℃: 232 A; Tc = 80℃: 179 A; (3)ICnom: 150 A; (4)ICRM, ICRM = 3xICnom :450 A; (5)VGES: -20 to 20 V; (6)tpsc, VCC = 800 V, VGE ≤ 15 V; VCES ≤ 1200 V, Tj = 150℃: 10μs; (7)Tj: -40 to 175℃.
Features
SKM150GB12T4 features: (1)IGBT4 = 4. Generation (Trench)IGBT; (2)VCEsat with positive temperature coefficient; (3)High short circuit capability, self limiting to 6 x ICNOM; (4)Soft switching 4. Generation CAL diode (CAL4).
