Product Summary

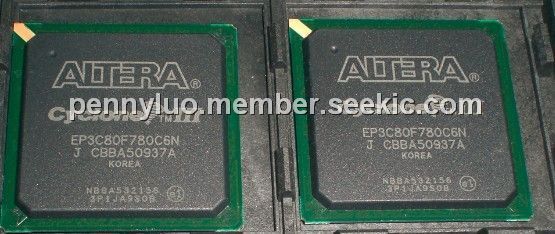

The EP3C80F780C6N is an FPGA.

Parametrics

EP3C80F780C6N absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.5V to +7.0V; (2)Operating Temperature Range (Noncondensing); (3)Commercial: 0℃ to +70℃; Industrial: -40℃ to +85℃; (4)Storage Temperature Range: -55℃ to +125℃; (5)Soldering Temperature (DIP, leads): +260℃ for 10 seconds; (6)Soldering Temperature (surface mount): See JPC/JEDEC Standard J-STD-020.

Features

EP3C80F780C6N features: (1)IOUT, DC output current, per pin: -25 to 40 mA; (2)VESDHBM, Electrostatic discharge voltage using the human body model: ±2000 V; (3)VESDCDM, Electrostatic discharge voltage using the charged device model: ±500 V; (4)TSTG, Storage temperature: -65 to 150℃; (5)TJ, Operating junction temperature -40 to 125℃.

Diagrams

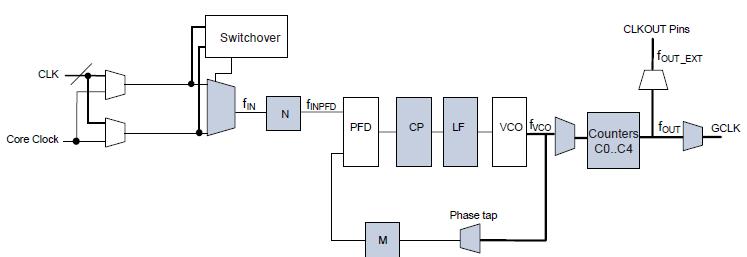

EP3C80F780C6N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP3C80F780C6N
EP3C80F780C6N


IC CYCLONE III FPGA 80K 780FBGA

Data Sheet

0-1: $221.10
