Product Summary
The V24C15C100BG is a DC-DC converter module uses advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency ZCS/ZVS switching provides high power density with low noise and high efficiency. The applications of the include Industrial and process control, distributed power, medical, ATE, communications, defense, aerospace.
Parametrics
V24C15C100BG absolute maximum ratings: (1)+In to -In voltage: -0.5 to +53 Vdc; (2)PC to -In voltage: -0.5 to +7.0 Vdc; (3)PR to -In voltage: -0.5 to +7.0 Vdc; (4)SC to -Out voltage: -0.5 to +1.5 Vdc; (5)Isolation voltage, in to out: 3000 Vrms; in to base: 1500 Vrms; out to base: 500 Vrms; (6)Operating Temperature: -55 to +100℃; (7)Storage Temperature: -65 to +125℃; (8)Pin soldering temperature: 500 (260) °F (℃) <5 sec; wave solder: 750 (390) °F (℃) <7 sec; hand solder; (9)Mounting torque: 5 (0.57) in-lbs (N-m).
Features
V24C15C100BG features: (1)RoHS Compliant (with F or G pin option); (2)DC input range: 18 - 36 V; (3)Operation to 16 V at 75% power after startup; (4)Input surge withstand: 50 V for 100 ms; (5)DC output: 3.3 ?48 V; (6)Programmable output: 10 to 110%; (7)Regulation: ±0.4% no load to full load; (8)Efficiency: Up to 89%; (9)Maximum operating temp: 100℃, full load; (10)Power density: up to 60 W per cubic inch; (11)Height above board: 0.43 in. (10,9 mm); (12)Parallelable, with N+M fault tolerance; (13)Low noise ZCS/ZVS architecture; (14)Isolated output.

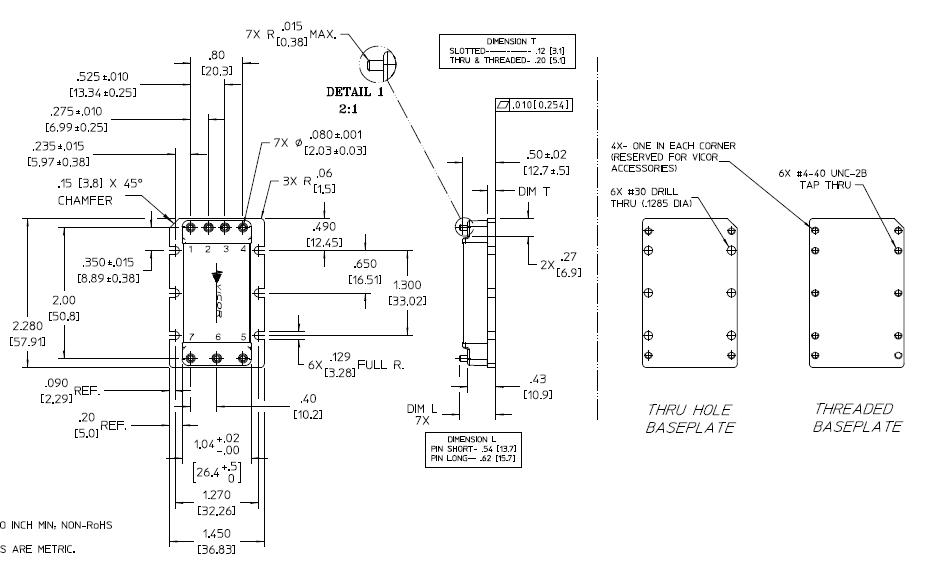

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 V24C15C100BG |
|
CONVERTER MOD DC/DC 15V 100W |
Data Sheet |
|
|
||||||
|
V24C15C100BG2 |
|
CONVERTER MOD DC/DC 15V 100W |
Data Sheet |
|
|
||||||
|
V24C15C100BG3 |
|
CONVERTER MOD DC/DC 15V 100W |
Data Sheet |
|
|
||||||
