Product Summary

The T370HW02 V402 is a phase control thyristor.

Parametrics

T370HW02 V402 absolute maximum ratings: (1)VDSM = VDRM, VRSM = VRRM +100V, VDRM: 600 to 1800V; (2)ITRMSM: 650A; (3)10ms, tvjmax, ITSM: 8KA; (4)180°elsin, 180ITAVM/tc: 370/85A/℃; (5)Tvj=Tvjmax, V(to): 0.80V; (6)Tvj=Tvjmax, rT: 0.50mΩ; (7)DIN IEC 747-6, (di/dt)cr: 200A/μs; (8)tp: 250μs typ; (9)DIN IEC 747-6, (di/dt)cr: F = 1000V/μs.

Features

T370HW02 V402 features: (1)Tvj=25℃, VGT: 2.2V; (2)Tvj=25℃, IGT: 250mA; (3)180°el sin, RthJC: 0.0850℃/W; (4)Tvj max: 125℃.

Diagrams

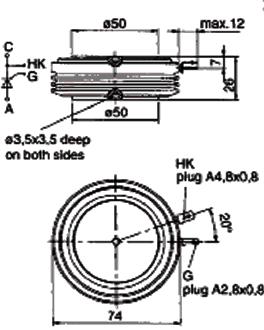

T370HW02 V402 block diagram
