Product Summary
The SS1A050000 is a reed relay.
Parametrics
SS1A050000 absolute maximum ratings: (1)Coil resistance: 500Ω(±10%); (2)Nominal coil voltage: 5Vdc; (3)Maximum continuous voltage: 10Vdc; (4)Must opeate: 3.75Vdc; (5)Must release: 1.0Vdc; (6)Rated current: 10mA.
Features
SS1A050000 features: (1)Epoxy molded single in line package; (2)Mounting space reduced by one half as compared with DIP; (3)Automatic insertion compatible; (4)Completely washable; (5)Interface directly with TTL logic; (6)Diode & magnetic shield are avaolable.

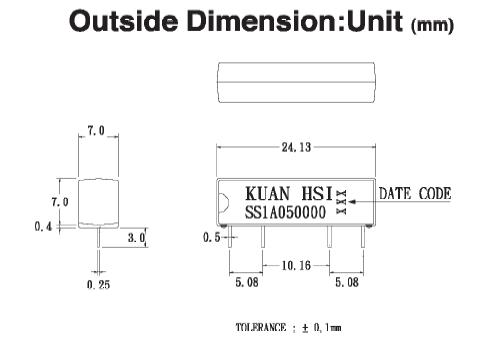

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SS1A050000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SS1A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SS1A050000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SS1A050099 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SS1A120000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SS1A120098 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SS1A120099 |
Other |
|
Data Sheet |
Negotiable |
|
||||
