Product Summary

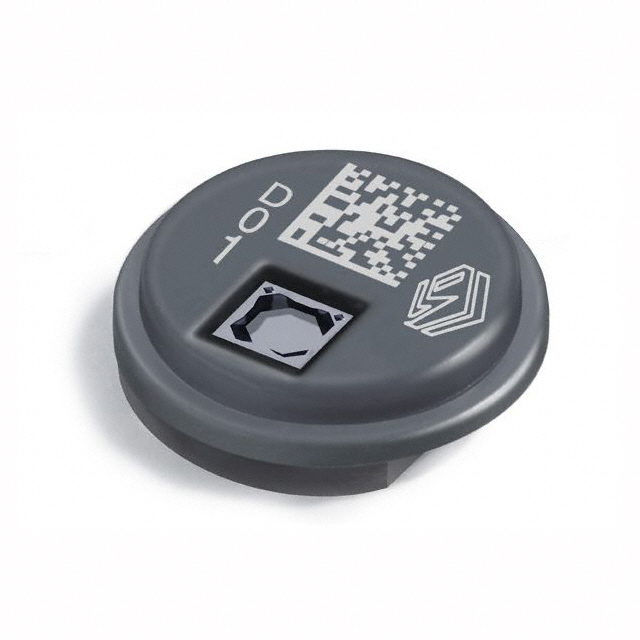

The SCP1000-D01 is an absolute pressure sensor. The applications of the SCP1000-D01 include Barometric pressure measurement and altimeter applications, Home weather stations, Advanced medical applications, Level gauging.
Parametrics
SCP1000-D01 absolute maximum ratings: (1)Supply voltage (Vdd): -0.3 to +3.6 V; (2)Voltage at input / output pins: -0.3 to (Vdd + 0.3) V; (3)ESD (Human Body Model): ±2.0 kV; (4)ESD (Charged Device Mode): ±0.5 kV; (5)Storage temperature: -30 to +85℃; (6)Proof pressure: 2.0 MPa.
Features
SCP1000-D01 features: (1)30 kPa - 120 kPa measuring range; (2)Single +2.4 ?3.3 V supply; (3)Four measuring modes plus power down mode; (4)On-chip temperature measurement; (5)Fully calibrated and compensated component; (6)Standard digital output: SPI or I2C; (7)Small package size with optional sealing gasket. Diameter 6.1 mm, height 1.7 mm; (8)Proof pressure 2.0 MPa; (9)Pb-free solderable component & RoHScompatible.

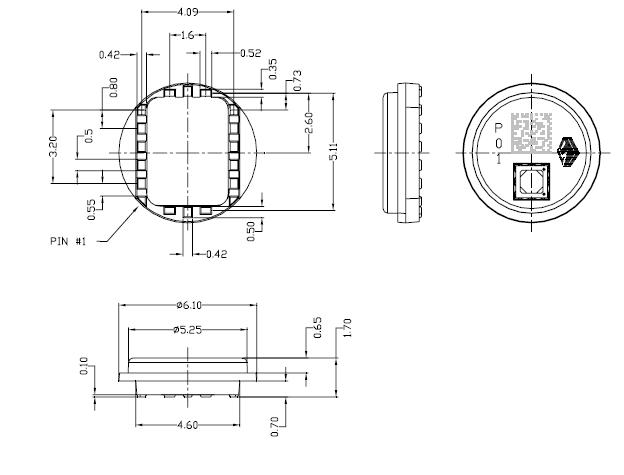

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
SCP1000-D01 |
SENSOR 30-120KPA SPI |
Data Sheet |
Negotiable |
|
||||||
SCP1000-D01 DEMO |
SCP1000 DEMO KIT |
Data Sheet |
Negotiable |
|
