The RA4-24W-K is a miniature relay.

Parametrics

RA4-24W-K absolute maximum ratings: (1)Resistance (initial)Maximum: 100 mΩ (at 1 A 6 VDC); (2)Rating (resistive): 0.5 A 120 VAC or 1 A 24 VDC; (3)Maximum Carrying Current: 2 A; (4)Maximum Switching Power: 60 VA, 24 W; (5)Maximum Switching Voltage: 250 VAC, 220 VDC; (6)Maximum Switching Current: 2 A; (7)Minimum Switching Load: 0.01 mA 10 mVDC; (8)Nominal power: 200mW; (9)Surge Voltage: 1500V.

Features

RA4-24W-K features: (1)Ultra high sensitivity; (2)High reliability-bifurcated contacts; (3)Conforms to FCC rules and regulations Part 68 Dielectric strength 1,500 VAC between coiand contacts, Surge strength 1,500 V; (4)UL, CSA recognized; (5)Wide operating range; (6)DIL pitch terminals; (7)Plastic sealed type; (8)Latching type available; (9)RoHS compliant since date code: 0418H Please see page 7 for more information.

Diagrams

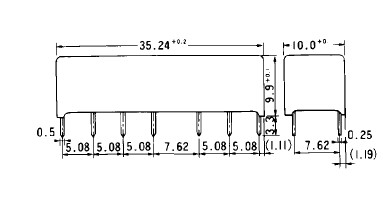

RA4-24W-K pin connection
