Product Summary
The MIC39300-1.8WU is a 3.0A lowdropout linear voltage regulator that provides a low voltage, high-current output with a minimum of external components. Utilizing Micrels proprietary Super βeta PNP pass element, the MIC39300-1.8WU offers extremely low dropout (typically 385mV at 3.0A)and low ground current (typically 36mA at 3.0A). The MIC39300-1.8WU is ideal for PC add-in cards that need to convert from standard 3.3V to 2.5V or 2.5V to 1.8V. A guaranteed maximum dropout voltage of 500mV over all operating conditions allows the MIC39300-1.8WU to provide 2.5V from a supply as low as 3V, and 1.8V from a supply as low as 2.5V. The MIC39300-1.8WU also has fast transient response for heavy switching applications. The MIC39300-1.8WU requires only 47μF of output capacitance to maintain stability and achieve fast transient response.
Parametrics
MIC39300-1.8WU absolute maximum ratings: (1)Supply Voltage (VIN): –20V to +20V; (2)Enable Voltage (VEN): +20V; (3)Storage Temperature (TS): –65℃ to +150℃ Lead; (4)Temperature (soldering, 5 sec.): 260℃; (5)Supply Voltage (VIN): +2.5V to +16V; (6)Enable Voltage (VEN): +16V; (7)Junction Temperature (TJ): –40℃ to +125℃; (8)IGND(do)Dropout Ground Pin Current VIN ≤ VOUT(nominal)– 0.5V, IOUT = 10mA: 6 mA; (9)IOUT(lim)Current Limit VOUT = 0V, VIN = VOUT + 1V: 4.5 A.
Features
MIC39300-1.8WU features: (1)3.0A minimum guaranteed output current; (2)550mV maximum dropout voltage over temperature; (3)Ideal for 3.0V to 2.5V conversion; (4)Ideal for 2.5V to 1.8V conversion; (5)1% initial accuracy; (6)Low ground current; (7)Current limiting and Thermal shutdown; (8)Reversed-battery protection; (9)Reversed-leakage protection; (10)Fast transient response; (11)TO-263 (D2Pak)and TO-220 packaging.

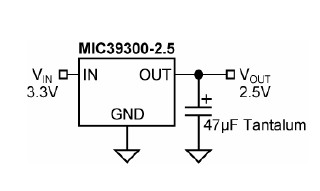

Diagrams
