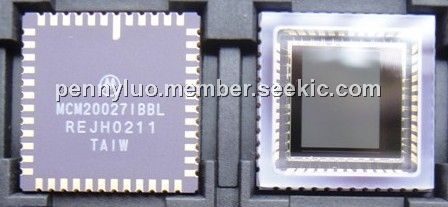

MCM200271BBL

Product Summary

The MCM20027IBBL is a fully integrated, high performance CMOS image sensor with features such as integrated timing, control, and analog signal processing for digital imaging applications. The MCM20027IBBL part provides designers a complete imaging solution with a monolithic image capture and processing engine thus making it a true camera on a chip. System benefits enable design of smaller, portable, low cost and low power systems. Thereby making the product suitable for a variety of consumer applications including still/full motion imaging, security/surveillance, and automotive among others.

Parametrics

MCM20027IBBL absolute maximum ratings: (1)DC Supply Voltage: -0.5 to 3.8 V; (2)DC Input Voltage: 0.5 to VDD + 0.5 V; (3)DC Output Voltage: -0.5 to VDD + 0.5 V; (4)DC Current Drain per Pin, Any Single Input or Output: ±50 mA; (5)DC Current Drain, VDD and VSS Pins: ±100 mA; (6)Storage Temperature Range: -65 to +150℃; (7)Lead Temperature (10 second soldering): 300℃.

Features

MCM20027IBBL features: (1)SXGA resolution, active CMOS image sensor with square pixel unit cells; (2)6.0mm pitch pixels with patented pinned photodiode architecture; (3)Bayer-RGB color filter array with optional micro lenses; (4)High sensitivity, quantum efficiency, and charge conversion efficiency; (5)Low fixed pattern noise / Wide dynamic range; (6)Antiblooming and continuous variable speed shutter; (7)Single master clock operation; (8)Digitally programmable via I2C interface; (9)Integrated on-chip timing/logic circuitry; (10)CDS sample and hold for suppression of low frequency and correlated reset noise; (11)20X programmable variable gain to optimize dynamic range and facilitate white balance and iris adjustment; (12)10-bit, pipelined algorithmic RSD ADC (DNL +0.5 LSB, INL; (13)±1.0 LSB); (14)Automatic column offset correction for noise suppression; (15)Pixel addressability to support Window of Interest windowing, resolution, and subsampling; (16)Encoded data stream; (17)10 fps full SXGA at 13.5MHz Master Clock Rate; (18)Single 3.3V power supply; (19)48 pin CLCC package.

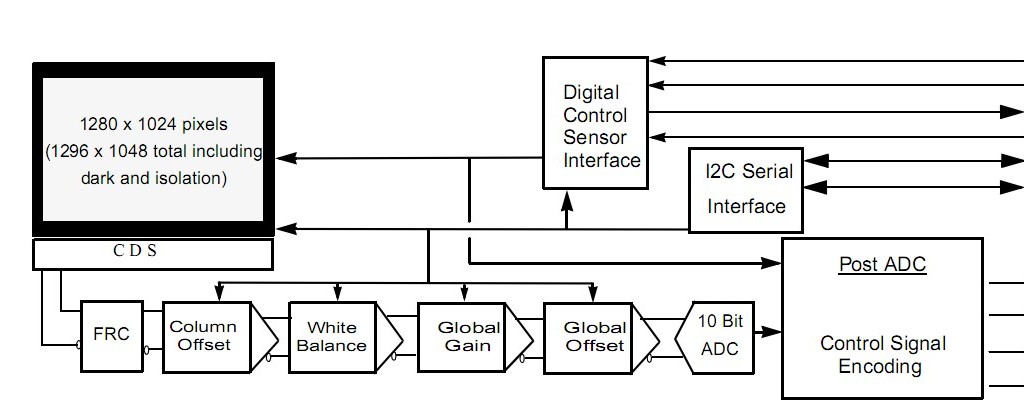

Diagrams
