MAX199ACNI

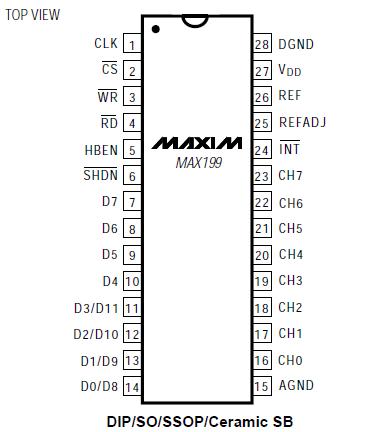

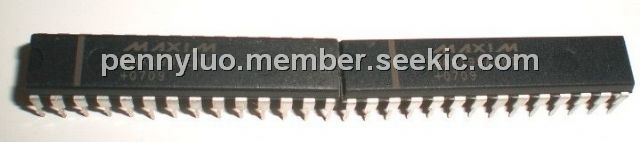

MAX199ACNI, Multi-Range 12-Bit DAS, DIP, -0.3V to +7V, 1143mW, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $17.30~17.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $17.30~17.50

PartNumber:: MAX199ACNI

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. penny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-16

From Other Seller

Part Number:MAX199ACNI
US $17.30 - 17.50
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX199ACNI is a multi-range, 12-bit data-acquisition system (DAS) requires only a single +5V supply for operation, and converts analog signals up to ±4V at its inputs. This system provides eight analog input channels that are independently software programmable for a variety of ranges: ±VREF, ±VREF/2, 0V to VREF, or 0V to VREF/2. This increases effective dynamic range to 14 bits, and provides the user flexibility to interface 4mA-to-20mA, ±12V, and ±15V powered sensors to a single +5V system. In addition, the converter is fault-protected to ±16.5V; a fault condition on any channel will not affect the conversion result of the selected channel. The applications of the MAX199ACNI include Industrial-Control Systems, Robotics, Data-Acquisition Systems, Automatic Testing Systems, Medical Instruments, Telecommunications.

Parametrics

MAX199ACNI absolute maximum ratings: (1)VDD to AGND: -0.3V to +7V; (2)AGND to DGND: -0.3V to +0.3V; (3)REF to AGND: -0.3V to (VDD + 0.3V); (4)REFADJ to AGND: -0.3V to (VDD + 0.3V); (5)Digital Inputs to DGND: -0.3V to (VDD + 0.3V); (6)Digital Outputs to DGND: -0.3V to (VDD + 0.3V); (7)CH0–CH7 to AGND: ±16.5V; (8)Continuous Power Dissipation (TA = +70℃); (9)Narrow Plastic DIP (derate 14.29mW/℃ above +70℃): 1143mW.

Features

MAX199ACNI features: (1)12-Bit Resolution, 1/2LSB Linearity; (2)Single +5V Operation; (3)Software-Selectable Input Ranges: ±VREF, ±VREF/2, 0V to VREF, 0V to VREF/2; (4)Internal 4.096V or External Reference; (5)Fault-Protected Input Multiplexer (±16.5V); (6)8 Analog Input Channels; (7)6μs Conversion Time, 100ksps Sampling Rate; (8)Internal or External Acquisition Control; (9)Two Power-Down Modes; (10)Internal or External Clock.
