Product Summary
The M52042FP is a semiconductor integrated circuit (IC) for picture signal processing that has been developed for NTSC system LCD color TV. This IC has a built-in luminance signal processing circuit and color signal processing circuit, which is employed to convert a composite video signal to an RGB signal. The applications of the M52042FP include LCD color TV and LCD color view finder.
Parametrics
M52042FP absolute maximum ratings: (1)Supply voltage, VCC: 4.8 V; (2)Power dissipation, Pd: 680 mW; (3)Operating temperature, Topr: -10 to 70℃; (4)Storage temperature, Tstg: -45 to 120℃; (5)Thermal derating, Kθ: 5.4 mW/℃; (6)Electrostatic capacity, Vmax: ±200 V.
Features
M52042FP features: (1)Low voltage and low power dissipation design; (2)Built-in Y/C separation circuit and external chroma trap switchable (fc is nearly equal to 1.5 MHz.); (3)Built-in sync separation circuit; (4)Provided with Y-signal blanking function by HD pulse; (5)R.G.B. signal output; (6)Tint, contrast, picture quality and color control linearly adjustable; (7)24-pin, shrink pitch, flat package employed; (8)Same package as in PAL system video chroma IC M52045FP, pin perfectly compatible.

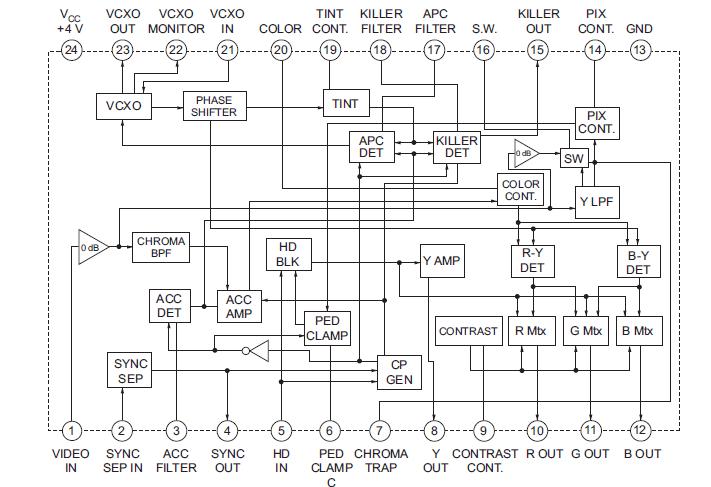

Diagrams
 |
