Product Summary

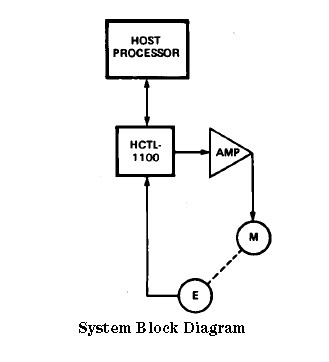

The HCTL-1100 is a high performance, general purpose motion control IC, fabricated in HP CMOS technology. The HCTL-1100 frees the host processor for other tasks by performing all the time-intensive functions of digital motion control. The programmability of all control parameters provides maximum flexibility and quickdesign of control systems with a minimum number of components. In addition to the HCTL-1100, the complete control system consists of a host processor to specify commands, an amplifier, and a motor with an incremental encoder (such as the HP HEDS-5XXX, -6XXX, -9XXX series). No analog compensation or velocity feedback is necessary.
Parametrics
HCTL-1100 absolute maximum ratings: (1)Operating Temperature, TA: -20°C to 85°C; (2)Storage Temperature, TS : -55°C to 125°C; (3)Supply Voltage, VDD: -0.3 V to 7 V; (4)Input Voltage, VIN: -0.3 V to VDD +0.3 V; (5)Maximum Operating Clock Frequency, fCLK : 2 MHz.
Features
HCTL-1100 features: (1)Low Power CMOS; (2)PDIP and PLCC Versions Available; (3)Enhanced Version of the HCTL-1000; (4)DC, DC Brushless, and Step Motor Control; (5)Position and Velocity Control; (6)Programmable Digital Filter and Commutator; (7)8-Bit Parallel, and PWM Motor Command Ports; (8)TTL Compatible; (9)SYNC Pin for Coordinating Multiple HCTL-1100 ICs; (10)100 kHz to 2 MHz Operation; (11)Encoder Input Port.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCTL-1100 |
Avago Technologies |
Motor / Motion / Ignition Controllers & Drivers Motion Control IC |
Data Sheet |
Negotiable |
|
||||
|
HCTL-1100#PLC |
Avago Technologies |
Motor / Motion / Ignition Controllers & Drivers Motion Control IC |
Data Sheet |
Negotiable |
|
||||
