Product Summary

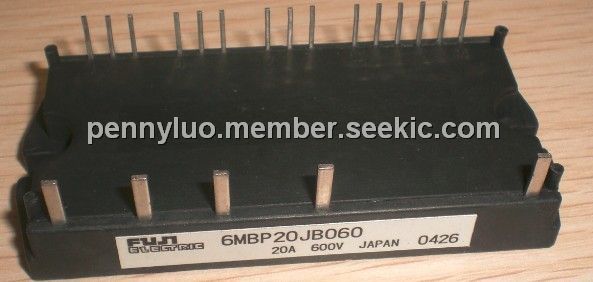

The 6MBP20JB060 is an IGBT Module.
Parametrics
6MBP20JB060 absolute maximum ratings: (1)DC bus voltage, VDC: 0 to 450V; (2)DC bus voltage (surge), VDC(squre): 0 to 500V; (3)DC bus voltage (short operating), VSC: 200 to 400V; (4)Collector-Emitter voltage, VCES: 0 to 600V; (5)INV, Collector current, DC, IC: 20A max; 1ms, ICP: 40A max; Duty=57.8%, -IC: 20A max; Collector power dissipation, One transistor, PC: 63W; (6)Junction temperature, Tj: 150℃; (7)Input voltage of power supply for Pre-Driver, VCC: -0.3 to 20V; (8)Input signal voltage, VIN: 0 to VZ; (9)Input signal current, IIN: 1mA max; (10)Alarm signal voltage, VALM: 0 to VCC; (11)Alarm signal current, IALM: 15mA max; (12)Storage temperature, Tstg: -40 to 125℃; (13)Operating case temperature, Top: -20 to 100℃; (14) Isolating voltage (Case-Terminal), Viso: AC2.5kV.
Features
6MBP20JB060 features: (1) Low power loss and soft switching; (2) High performance and high reliability IGBT with overheating protection; (3) Higher reliability because of a big decrease in number of parts in built-in control circuit.

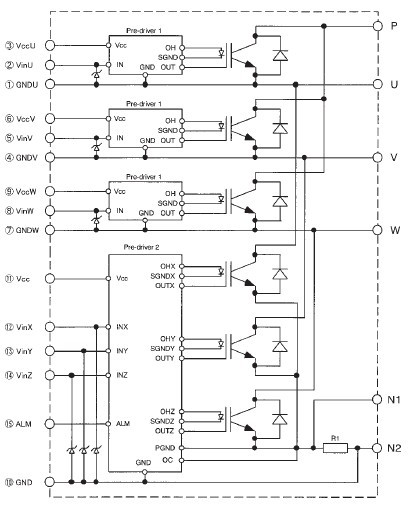

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 6MBP20JB060-03 |
Other |
|
Data Sheet |
Negotiable |
|
||||
