Product Summary

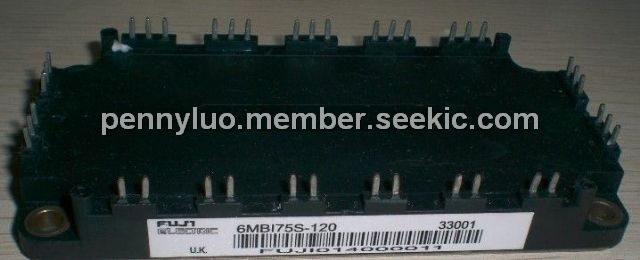

The 6MBI75S-120 is an IGBT module. The applications of it are Inverter for motor drive, AC and DC servo drive amplifier, Uninterruptible power supply, Industrial machines, such as welding machines.
Parametrics
6MBI75S-120 absolute maximum ratings: (1)Collector-Emitter voltage:1200V; (2)Gate-Emitter voltage:±20V; (3)Collector current: IC:100A or 75A, IC pulse:200A or 150A, -IC:75A, -IC pulse:150A; (4)Max. power dissipation:520W; (5)Operating temperature:+150℃; (6)Storage temperature:-40℃ to +125℃; (7)Isolation voltage:AC2500V; (8)Screw torque:3.5N.m.
Features
6MBI75S-120 features: (1)Compact package; (2)P.C.board mount; (3)Low VCE(sat).

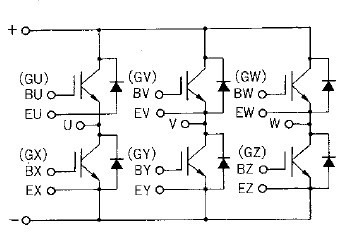

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 6MBI75S-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
