Product Summary

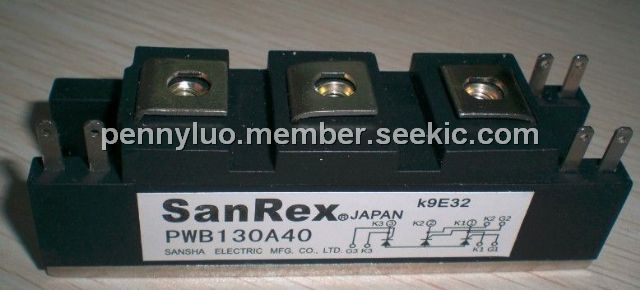

The PWB130A40 is a thyristor module. The PWB130A40 is a Thyristor module suitable for low voltage, 3 phase recifier applications.
Parametrics
PWB130A40 absolute maximum ratings: (1)VRRM Repetitive Peak Reverse Voltage: 400 V; (2)VRSM Non-Repetitive Peak Reverse Voltage: 480V; (3)VDRM Repetitive Peak Off-State Voltage: 400V; (4)IT AV Average On-State Current: Single phase, half wave, 180 conduction, Tc 116℃: 130A; (5)IT RMS R.M.S. On-State Current: Single phase, half wave, 180 conduction, Tc 116℃: 204A; (6)ITSM Surge On-State Current: 3200/3500A; (7)I2t I2t: 26000A2S; (8)PGM Peak Gate Power Dissipation: 10W; (9)PG AV Average Gate Power Dissipation: 1W; (10)IFGM Peak Gate Current: 3A; (11)VFGM Peak Gate Voltage(Forward): 10V; (12)Tj Operating Junction Temperature: -30 to 150℃; (13)Tstg Storage Temperature: -30 to 125℃.
Features
PWB130A40 features: (1)IT(AV)80A (each device); (2)High Surge Current 2500 A (60Hz); (3)Easy Construction; (4)Non-isolated. Mounting base as common Anode terminal.
