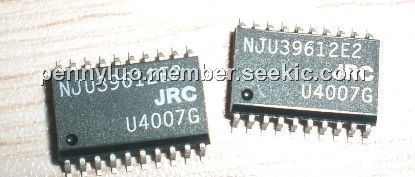

NJU39612E2 is a Digital-to-Analog Converter (DAC) developed to be used in micro stepping applications together with the dual stepper motor driver. The NJU39612E2 has a set of input registers connected to an 8-bit data port for easy interfacing directly to a microprocessor. Two registers are used to store the data for each seven-bit DAC, the eighth bit being a sign bit(sign/magnitude coding).
Parametrics
NJU39612E2 absolute maximum ratings: (1)Voltage Supply: 4 VDD - 6 V; Logic inputs 5-14,16, VI: -0.3 VDD +0.3 V; Reference input 1, VRef: -0.3 VDD+ 0.3 V; (2)Current: Logic inputs 5-14,16 II: -0.4 +0.4 mA; (3)Temperature Storage temperature, Tstg: -55 +150 ℃; Operating ambient temperature, Topr: -20 to +85℃.
Features
NJU39612E2 features: (1)Analog control voltages from 3V down to 0.0V; (2)High-speed microprocessor interface; (3)Full -scale error: ±1 LSB; (4)Fast conversion speed: 3 μs; (5)Matches the dual stepper motor drivers; (6)Package: EMP20.

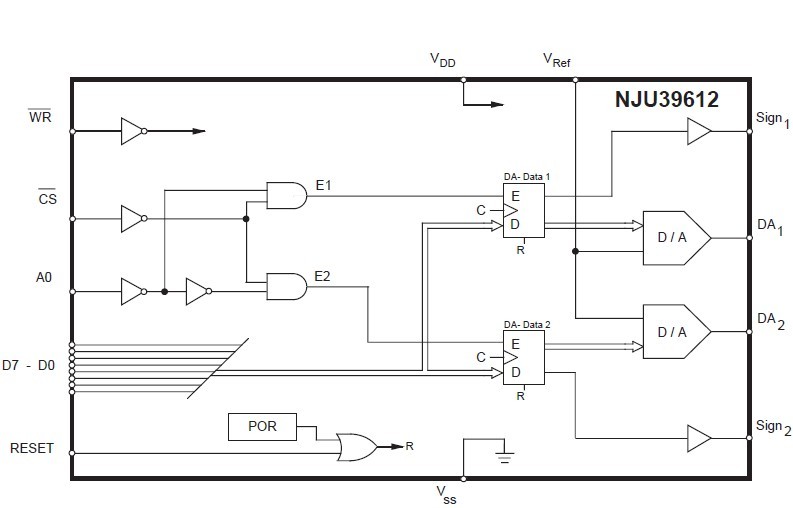

Diagrams
