Product Summary

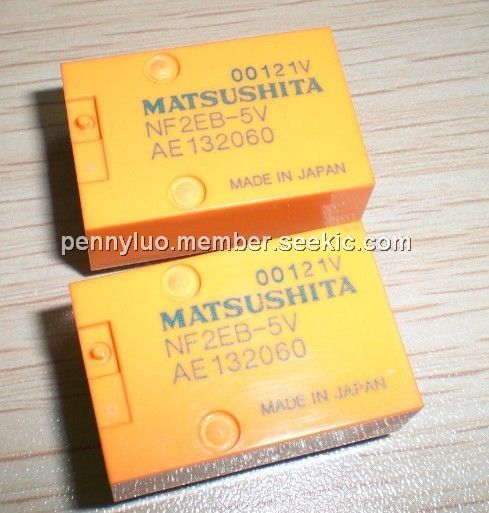

The NF2EB-5V is a 5V-Panasonic Electric Works Low Signal Relay. The applications of the NF2EB-5V include Electronic equipment, Household applications, Alarm systems, Off ce machines, Communication equipment, Measuring equipment, Remote control systems, General control circuits, Machine tools, Industrial machinery, etc.
Parametrics
NF2EB-5V absolute maximum ratings: (1)Arrangement: 2 Form C, 4 Form C; (2)Initial contact resistance (By voltage drop 6 V DC 1 A), Max: 50 mΩ; Typical: 25 mΩ; (3)Contact material, Movable contact: Gold-clad silver; Stationary contact: Gold-clad silver; (4)Rating, (resistive load), Max. switching power: 60 W 100 VA; Max. switching voltage: 220 V AC, DC; Max. switching current: 2 A; (5)Expected life (min. operations), Mechanical: 100,000,000.
Features
NF2EB-5V features: (1)Flatpack; (2)Long seller.

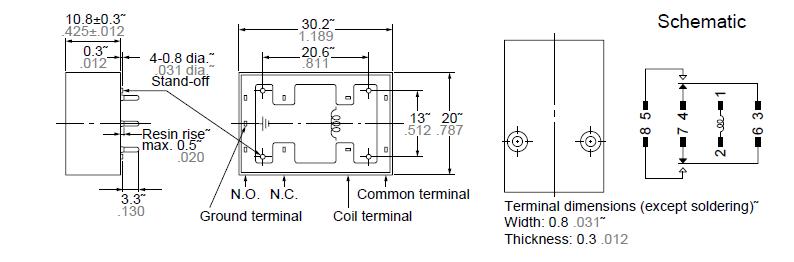

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NF2EB-5V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 5VDC DPDT FLATPACK PCB |
Data Sheet |
|
|
||||||||||||
 |
NF2EB-5V-1 |
Panasonic Electric Works |
RELAY 2A 5VDC AMB FLATPACK PCB |
Data Sheet |
|
|
||||||||||||
