Product Summary
The MPC8264AZUPIBB is a Microprocessor.
Parametrics
MPC8264AZUPIBB absolute maximum ratings: (1)Core supply voltage2: -0.3 to 2.5 V; (2)PLL supply voltage2: -0.3 to 2.5 V; (3)I/O supply voltage3: -0.3 to 4.0 V; (4)Input voltage4: GND(-0.3) to 3.6 V; (5)Junction temperature: 120 ℃; (6)Storage temperature range: -55 to +150℃.
Features
MPC8264AZUPIBB features: (1)Dual-issue integer core; (2)Separate power supply for internal logic and for I/O; (3)Separate PLLs for G2 core and for the CPM; (4)64-bit data and 32-bit address 60x bus; (5)32-bit data and 18-bit address local bus; (6)60x-to-PCI bridge (MPC8265 and MPC8266 only); (7)System interface unit (SIU); (8)Twelve-bank memory controller; (9)Communications processor module (CPM); (10)TC layer (MPC8264 and MPC8266 only).

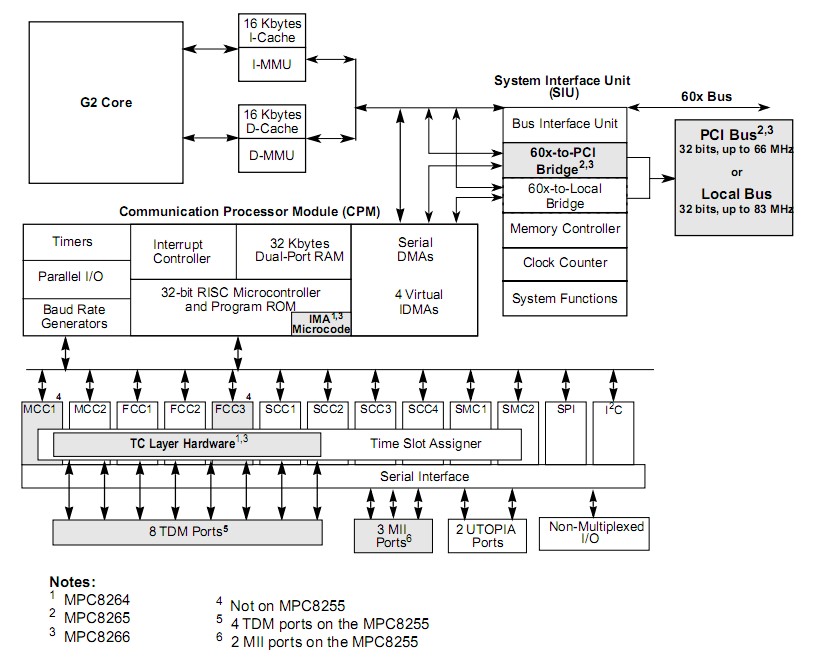

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPC8264AZUPIBB |
Freescale Semiconductor |
Microprocessors (MPU) POWERQUICC II HIP4 REV B |
Data Sheet |
|
|
||||||||||
