Product Summary

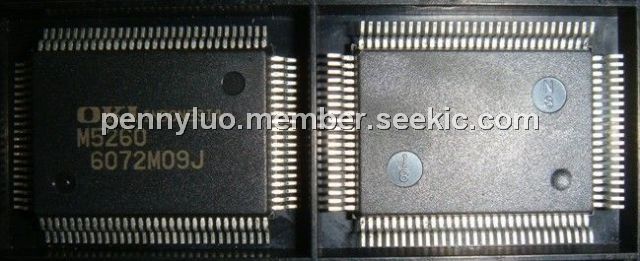

The M5260 is a dot matrix common/segment LCD driver LSI which is fabricated using low power CMOS metal gate technology. The M5260 consists of 80-bit shift register, 80-bit latch, 80-bit level shifter and 80-bit 4-level driver. It converts display data, which is serially received from an LCD controller LSI, to parallel data, and outputs LCD driving waveform to LCD. The M5260 can drive a variety of LCD panels since the bias voltage can be optionally supplied from an external source.
Parametrics
M5260 absolute maximum ratings: (1)Supply Voltage, VDD: -0.3 to 6.0V when Ta=25℃; (2)Supply Voltage, VLC: 0 to 18V when Ta=25℃, VDD-V5; 0 to 20V when Ta=25℃, VDD-V5; (3)Input Voltage, VI: -0.3 to VDD+0.3V when Ta=25℃; (4)Storage Temperature, Tstg: -55 to 150℃.
Features
M5260 features: (1)Supply voltage: 4.5 to 5.5V; (2)LCD driving voltage: 8 to 18V; (3)Applicable LCD duty: static and 1/32 to 1/64; (4)Bias voltage can be supplied externally; (5)Can be used either as common or segment driver; (6)Interface with MSM6255 LCD controller LSI; (7)package: 100-pin plastic QFP.

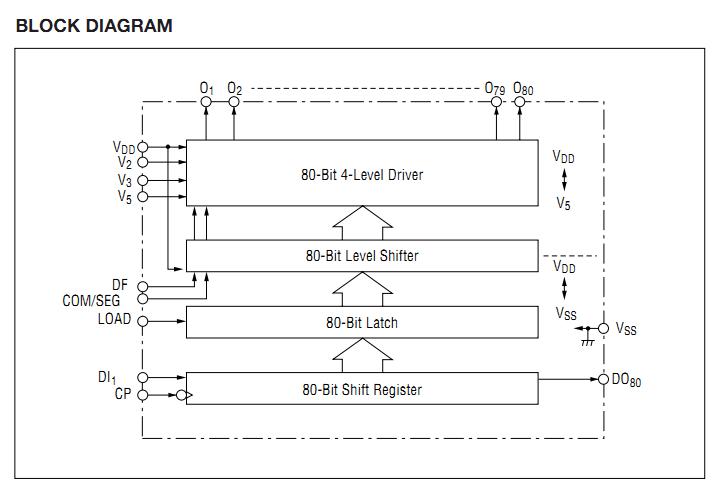

Diagrams
 |
