Product Summary
The ISD2590P is a Single-Chip Voice Record/Playback Device provides high-quality solutions for 60- to 120-second messaging applications. The CMOS device include an on-chip oscillator, microphone preamplifier, automatic gain control, antialiasing filter, smoothing filter, speaker amplifier, and high density multi-level storage array. In addition, the ISD2590P is microcontroller compatible, allowing complex messaging and addressing to be achieved.
Parametrics
ISD2590P absolute maximum ratings: (1)Junction temperature: 150℃; (2)Storage temperature range: -65 to +150℃; (3)Voltage applied to any pin: (VSS-0.3V) to (VCC +0.3V); (4)Voltage applied to any pin(Input current limited to ±20mA): (VSS -1.0V) to (VCC +1.0V); (5)Lead temperature(Soldering-10 seconds): 300℃; (6)VCC-VSS: -0.3 V to +7.0V.
Features
ISD2590P features: (1)Easy-to-use single-chip voice record/playback solution; (2)High-quality, natural voice/audio reproduction; (3)Manual switch or microcontroller compatible playback can be edge- or level-activated; (4)Single-chip durations of 60, 75, 90 and 120 seconds; (5)Directly cascafable for longer durations; (6)Automatic power-down, standby current 1μA; (7)Zero-power message storage-eliminates battery backup circuits; (8)Fully addressable to handle multiple messages; (9)100-year message retention.

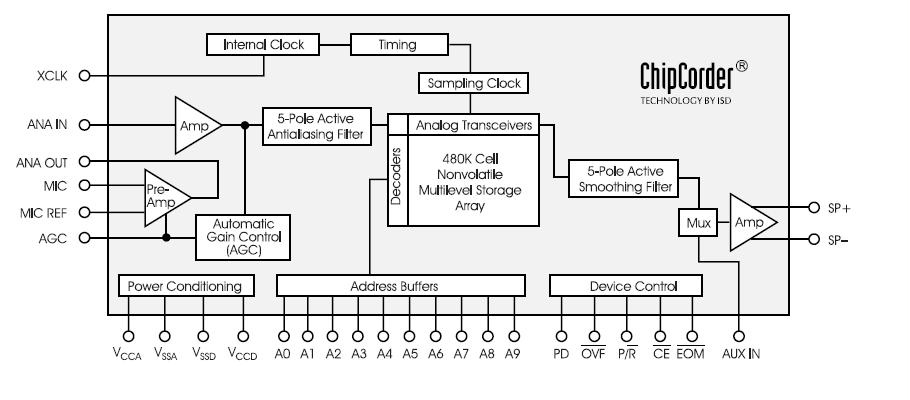

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

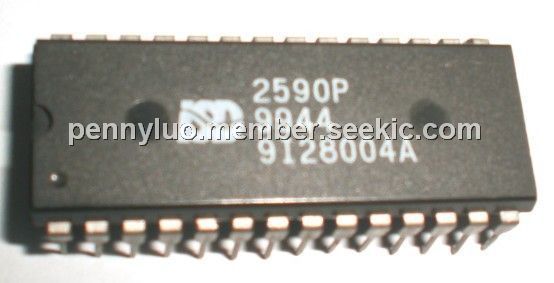

 ISD2590P |
|
IC MEM VOICE REC/PLAY 90S 28DIP |
Data Sheet |
Negotiable |
|
||||
|
ISD2590PY |
|
IC MEM VOICE REC/PLAY 90S 28-DIP |
Data Sheet |
Negotiable |
|
||||
