Product Summary

The AMP03G is a monolithic unity-gain, high speed differential amplifier. Incorporating a matched thin-film resistor network, the AMP03G features stable operation over temperature without requiring expensive external matched components. The AMP03G is a basic analog building block for differential amplifier and instrumentation applications. The AMP03G is a higher speed alternative to the INA105. Featuring slew rates of 9.5 V/ms, and a bandwidth of 3 MHz, the AMP03G offers superior performance for high speed current sources, absolute value amplifiers and summing amplifiers than the INA105.

Parametrics

AMP03G absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: Supply Voltage; (3)Output Short Circuit Duration: Continuous; (4)Storage Temperature Range P, J Package: -65℃ to +150℃; (5)Lead Temperature (Soldering, 60 sec): +300℃; (6)Junction Temperature: +150℃; (7)Operating Temperature Range: -40℃ to +85℃.

Features

AMP03G features: (1)High CMRR: 100 dB Typ; (2)Low Nonlinearity: 0.001% Max; (3)Low Distortion: 0.001% Typ; (4)Wide Bandwidth: 3 MHz Typ; (5)Fast Slew Rate: 9.5 V/ms Typ; (6)Fast Settling (0.01%): 1 μs Typ; (7)Low Cost.

Diagrams

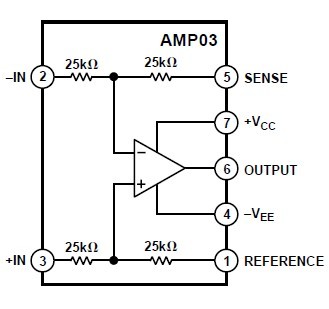

AMP03G block diagram
