Product Summary

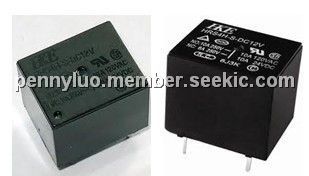

The HRS4H-S-DC12V is a PCB power relay.

Parametrics

HRS4H-S-DC12V absolute maximum ratings: (1)Nominal Voltage : 3V dc to 48V dc; (2)Nominal Power Consumption : 360 to 450 mW; (3)Maximum Switching Voltage : 110V dc/240V ac; (4)Maximum Switching Current : 15A; (5)Maximum Switching Power : 1800VA , 360W; (6)Contact Resistance (Initial): 50mΩ at 6V dc 1A; (7)Maximum Operate Time : 8ms; (8)Maximum Release Time : 5ms; (9)Operating Temperature Range : -30℃ to +85℃; (10)Shock Resistance : 10G; (11)Vibration Resistance : 10 - 55Hz , Amplitude 15mm.

Features

HRS4H-S-DC12V features: (1)SPCO contacts; (2)Sealed to allow washing after flow soldering.

Diagrams

HRS4H-S-DC12V pin connection
