Product Summary

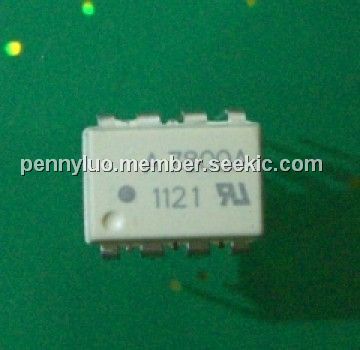

The HCPL-7800A is a high CMR isolation amplifier. The device provides a unique combination of features ideally suited for motor control circuit designers.
Parametrics
HCPL-7800A absolute maximum ratings: (1)Storage Temperature:-55℃ to 125℃; (2)Ambient Operating Temperature:-40℃ to 100℃; (3)Supply Voltages:0V to 5.5V; (4)Steady-State Input Voltage:-2.0V to VDD1+0.5V; (5)Two Second Transient Input Voltage:-6.0; (6)Output Voltages:-0.5V to VDD2+0.5V; (7)Lead Solder Temperature:260℃(1.6 mm below seating plane, 10 sec.).
Features
HCPL-7800A features: (1)15 kV/μs Common-Mode Rejection at VCM = 1000V; (2)Compact, Auto-Insertable Standard 8-pin DIP Package; (3)4.6 μV/°C Offset Drift vs. Temperature; (4)0.9 mV Input Offset Voltage; (5)85 kHz Bandwidth; (6)0.1% Nonlinearity; (7)Worldwide Safety Approval: UL 1577 (3750 V rms/1 min), VDE 0884 and CSA; (8)Advanced Sigma-Delta A/D Converter Technology; (9)Fully Differential Circuit Topology; (10)1 μm CMOS IC Technology.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-7800A |
Avago Technologies |
Special Purpose Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A#300 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A-300E |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A-500E |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A#500 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A-000E |
Avago Technologies |
Special Purpose Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
