Product Summary
The FD300R12KE3 is an IGBT module.
Parametrics
FD300R12KE3 absolute maximum ratings: (1)collector emitter voltage, Tvj= 25℃, VCES: 1200V; (2)DC collector current, Tc= 80℃, IC, nom: 300A; (3)DC collector current, Tc= 25℃, IC: 480A; (4)repetitive peak collector current, tp= 1ms, Tc= 80℃, ICRM: 600A; (5)total power dissipation, Tc= 25℃, Transistor, Ptot: 1470W; (6)gate emitter peak voltage, VGES: +/- 20V; (7)DC forward current, IF: 300A; (8)repetitive peak forward current, tp= 1ms, IFRM: 600A.
Features
FD300R12KE3 features: (1)internal insulation: Al2O3; (2)comperative tracking index: 425; (3)mounting torque, screw M6: 3,0 to 6,0Nm; (4)terminal connection torque, terminals M6: 2,5 to 5,0Nm; (5)weight: 340g.

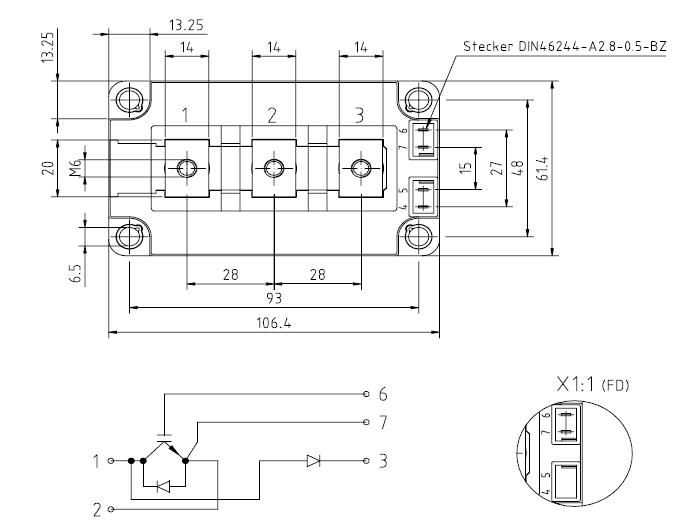

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FD300R12KE3 |
Infineon Technologies |
IGBT Transistors 1200V 300A CHOPPER |
Data Sheet |
|
|
||||||||
