Product Summary

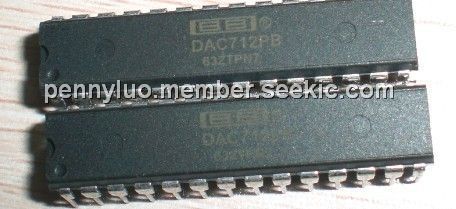

The DAC712PB is a complete 16-bit resolution D/A converter with 16 bits of monotonicity over temperature. The DAC712PB has a precision +10V temperature compensated voltage reference, ±10V output amplifier and 16-bit port bus interface. The digital interface is fast, 60ns minimum write pulse width, is double-buffered and has a CLEAR function that resets the analog output to bipolar zero. GAIN and OFFSET adjustment inputs are arranged so that they can be easily trimmed by external D/A converters as well as by potentiometers.

Parametrics

DAC712PB absolute maximum ratings: (1)+VCC to COMMON: 0V, +17V; (2)-VCC to COMMON: 0V, -17V; (3)+VCC to -VCC: 34V; (4)Digital Inputs to COMMON: -1V to +VCC -0.7V; (5)External Voltage Applied to BPO and Range Resistors: ±VCC; (6)VREF OUT: Indefinite Short to COMMON; (7)VOUT: Indefinite Short to COMMON; (8)Power Dissipation: 750mW; (9)Storage Temperature: -60℃ to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.

Features

DAC712PB features: (1)high-speed 16-bit parallel doublebuffered interface; (2)voltage output: ±10v; (3)13-, 14-, and 15-bit linearity grades; (4)16-bit monotonic over temperature (l grade); (5)power dissipation: 600mw max; (6)gain and offset adjust: convenient for auto-cal d/a converters; (7)28-lead dip and soic packages.

Diagrams

DAC712PB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DAC712PB
DAC712PB

Texas Instruments

DAC (D/A Converters) 16-Bit Digital-to- Converter

Data Sheet

0-1: $23.00
1-25: $19.91
25-100: $18.65
100-250: $17.43
DAC712PBG4
DAC712PBG4

Texas Instruments

DAC (D/A Converters) 16-Bit Digital-to- Converter

Data Sheet

0-1: $20.74
1-25: $18.65
25-100: $17.80
100-250: $16.79
