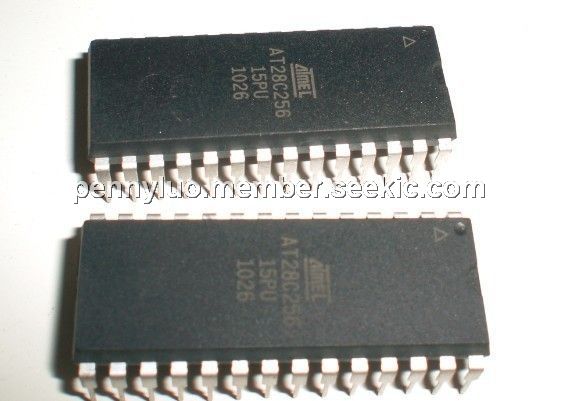

AT28C256-15PU

AT28C256-15PU, 256K (32K x 8) Paged Parallel EEPROM, DIP, -0.6V to +13.5V, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.50~8.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.50~8.70

PartNumber:: AT28C256-15PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. penny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-11

From Other Seller

Part Number:AT28C256-15PU
US $7.50 - 8.70
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT28C256-15PU is a high-performance electrically erasable and programmable read-only memory. Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT28C256-15PU offers access times to 150 ns with power dissipation of just 440 mW. When the device is deselected, the CMOS standby current is less than 200 mA.

Parametrics

AT28C256-15PU absolute maximum ratings: (1)Temperature under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.

Features

AT28C256-15PU features: (1)Fast Read Access Time – 150 ns; (2)Automatic Page Write Operation; (3)Internal Address and Data Latches for 64 Bytes; (4)Internal Control Timer; (5)Fast Write Cycle Times; (6)Page Write Cycle Time: 3 ms or 10 ms Maximum; (7)1 to 64-byte Page Write Operation; (8)Low Power Dissipation; (9)50 mA Active Current; (10)200 μA CMOS Standby Current; (11)Hardware and Software Data Protection; (12)DATA Polling for End of Write Detection; (13)High Reliability CMOS Technology; (14)Endurance: 104 or 105 Cycles; (15)Data Retention: 10 Years; (16)Single 5V ± 10% Supply; (17)CMOS and TTL Compatible Inputs and Outputs; (18)JEDEC Approved Byte-wide Pinout; (19)Full Military and Industrial Temperature Ranges; (20)Green (Pb/Halide-free) Packaging Option.
