Product Summary
The A6276ELW is a 16-bit serial-input, constantcurrent latched LED driver. The A6276ELW is specifically designed for LEDdisplay applications. The A6276ELW includes a 16-bit CMOS shift register, accompanying data latches, and 16 npn constant-current sink drivers. Except for package style and allowable package power dissipation, the two devices are identical. The CMOS shift register and latches allow direct interfacing with microprocessor-based systems. With a 5 V logic supply, typical serial data-input rates are up to 20 MHz.
Parametrics
A6276ELW absolute maximum ratings: (1)Supply Voltage, VDD: 7.0 V; (2)Output Voltage Range, VO: -0.5 V to +17 V; (3)Output Current, IO: 90 mA; (4)Ground Current, IGND: 1475 mA; (5)Input Voltage Range, VI: -0.4 V to VDD + 0.4 V; (6)Operating Temperature Range, TA: -40 to +85℃; (7)Storage Temperature Range, TS: -55 to +150℃.
Features
A6276ELW features: (1)To 90 mA Constant-Current Outputs; (2)Under-Voltage Lockout; (3)Low-Power CMOS Logic and Latches; (4)High Data Input Rate; (5)Functional Replacement for TB62706BN/BF.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A6276ELW |
|

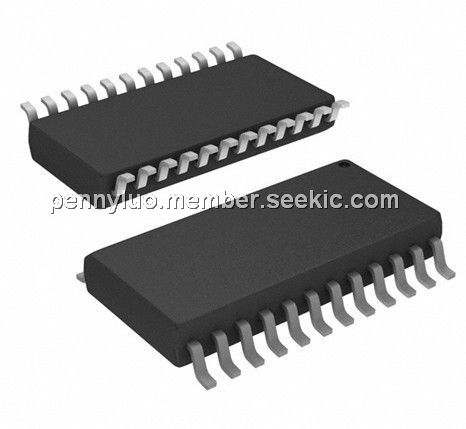

IC LED DRIVER LINEAR 24-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
A6276ELW-T |
|
IC LED DRIVER LINEAR 24-SOIC |
Data Sheet |
|
|
||||||
|
A6276ELWTR |
|
IC LED DRIVER LINEAR 24-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
A6276ELWTR-T |
|
IC LED DRIVER LINEAR 24-SOIC |
Data Sheet |
Negotiable |
|
||||||
