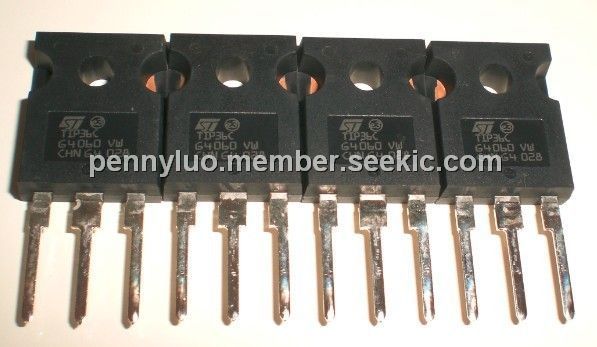

Product Summary

The TIP36C is a Complementary power transistor manufactured in planar technology with “base island” layout. The resulting transistors show exceptional high gain performance coupled with very low saturation voltage. The applications of the TIP36C include General purpose, Audio amplifier.

Parametrics

TIP36C absolute maximum ratings: (1)VCBO, Collector-base voltage (IE = 0): 100 V; (2)VCEO, Collector-emitter voltage (IB = 0): 100 V; (3)VEBO, Emitter-base voltage (IC = 0): 5 V; (4)IC, Collector current: 25 A; (5)ICM, Collector peak current (tP < 5 ms): 50 A; (6)IB, Base current: 5 A; (7)Ptot, Total dissipation at Tcase = 25℃: 125 W; (8)Tstg, Storage temperature: -65 to 150℃; (9)TJ, Max. operating junction temperature: 150℃.

Features

TIP36C features: (1)Low collector-emitter saturation voltage; (2)Complementary NPN-PNP transistors.

Diagrams

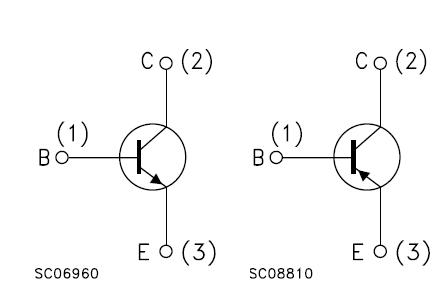

TIP36C block diagram
