Product Summary

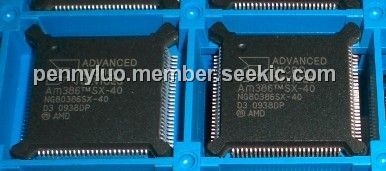

The NG80386SX-40 is a low-cost, high-performance CPU for embedded applications. Embedded customers benefit from using the Am386 microprocessor in a number of ways.

Parametrics

NG80386SX-40 absolute maximum ratings: (1)Storage Temperature: -65 to +150℃; (2)Ambient Temperature Under Bias: -65 to +125℃; (3)Supply Voltage with respect to Vss: -0.5 V to +7.0 V; (4)Voltage on Other Pins: -0.5 V to (Vcc +0.5) V.

Features

NG80386SX-40 features: (1)16-bit data bus; (2)24-bit address bus; (3)16-Mbyte address range; (4)Long-term stable supply from AMD; (5)True Static design for low-power applications; (6)3–5 V operation (at 25 MHz); (7)Ideal for cost-sensitive designs; (8)True DC (0 MHz) operation.

Diagrams

NG80386SX-40 block diagram
