MT9V137C12STC

Product Summary

The MT9V137C12STC is a 1/4-inch VGA-format CMOS active-pixel digital image sensor, the result of combining the MT9V011 image sensor core with Micron Imagings third-generation digital image flow processor technology. The MT9V137C12STC has an active imaging pixel array of 649 x 489, capturing high-quality color images at VGA resolution. The MT9V137C12STC is a complete camera-on-a-chip solution and is designed specifically to meet the demands of battery-powered products such as cellular phones, PDAs, and toys. It incorporates sophisticated camera functions on-chip and is programmable through a simple two-wire serial interface.

Parametrics

MT9V137C12STC absolute maximum ratings: (1)Optical Format: 1/4-inch (4:3); (2)Active Imager Size: 3.58mm(H)x 2.69mm(V), 4.48mm (Diagonal); (3)Active Pixels: 640H x 480V (VGA); (4)Pixel Size: 5.6um x 5.6um; (5)Maximum Data Rate/ Master Clock: 12-13.5 MPS/24-27 MHz; (6)ADC Resolution: 10-bit, on-chip; (7)Responsivity: 1.9 V/lux-sec (550nm); (8)Dynamic Range: 60dB; (9)SNRMAX: 45dB; (10)Supply Voltage: 2.8V +0.25V; (11)Power Consumption: <80mW at 2.8V, 15 fps at 12MHz; (12)Operating Temperature: -20℃ to +60℃.

Features

MT9V137C12STC features: (1)DigitalClarity CMOS Imaging Technology; (2)System-On-a-Chip (SOC)—Completely integrated camera system; (3)Ultra low-power, low cost CMOS image sensor; (4)Superior low-light performance; (5)Up to 30 fps progressive scan at 27 MHz for highquality video at VGA resolution; (6)On-chip Image Flow Processor (IFP)performs sophisticated processing: color recovery and correction, sharpening, gamma, lens shading correction, on-the-fly defect correction, 2X fixed zoom; (7)Image decimation to arbitrary size with smooth, continuous zoom and pan; (8)Automatic exposure, white balance and black compensation, flicker avoidance, color saturation, and defect identification and correction, auto frame rate, back light compensation; (9)Xenon and LED-type flash support; (10)Two-wire serial programming interface; (11)ITU_R BT.656 (YCbCr), YUV, 565RGB, 555RGB, and 444RGB output data formats.

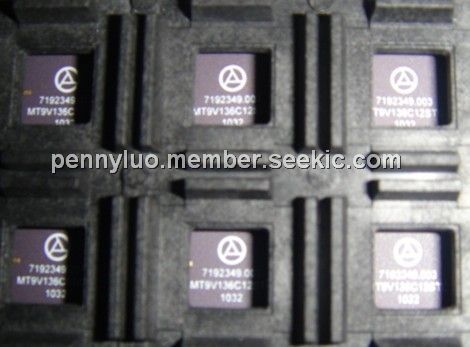

Diagrams
