Product Summary
The IP178C-LF is an 8-port switch controller, SSRAM, and 8 10/100 Ethernet transceivers. Each of the transceivers complies with theIEEE802.3, IEEE802.3u, and IEEE802.3xspecifications. The transceiver is designed in DSP approach in 0.18um technology; it has high noise immunity and robust performance. The IP178C-LF operates in store and forward mode. It supports flow control, auto MDI/MDI-X, CoS, portbase VLAN, bandwidth control, DiffServ, SMARTMAC and LED functions, etc. Each port can beconfigured as auto-negotiation or forced 10Mbps/100 Mbps, full/half duplexmode. Using an EEPROM or pull up/down resistors on specificpins can configure the desired options.
Parametrics
IP178C-LF absolute maximum ratings: (1)Supply Voltage: -0.3V to 4.0V; (2)Input Voltage: -0.3V to 5.0V; (3)Output Voltage: -0.3V to 5.0V; (4)Storage Temperature: -65℃ to 150℃; (5)Ambient Operating Temperature (Ta): 0℃ to 70℃.
Features
IP178C-LF features: (1)Support 1k MAC address; (2)Support auto-polarity for 10 Mbps; (3)Support filter/ forward special DA option; (4)Support broadcast storm protection; (5)Auto MDI-MDIX option; (6)Support port security option to lock the first MAC address; (7)Support one MII/RMII port, which works at 100 Mbps full duplex for router application; (8)Support port base VLAN & tag VLAN; (9)Support CoS; (10)Support SMART MAC function; (11)Support spanning tree protocol; (12)Support max forwarding packet length 1552/ 1536 bytes option; (13)Support 8-level bandwidth control; (14)Support SCA; (15)Built in linear regulator control circuit; (16)Support Lead Free package (Please refer to the Order Information).

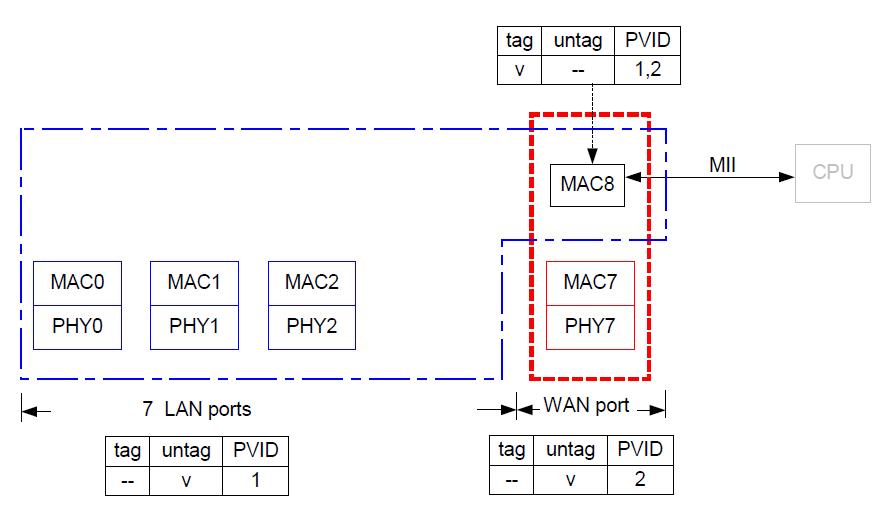

Diagrams
 |
